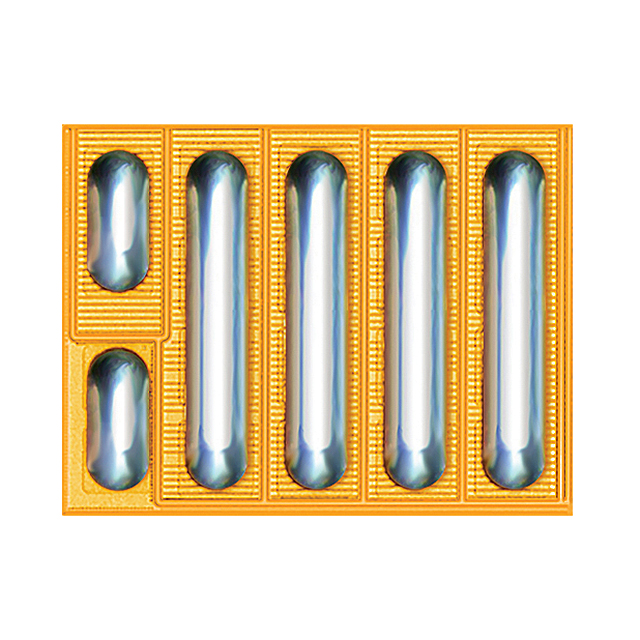

EPC2202
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EPC2202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EPC2202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EPC2202 |
|---|---|
| Manufacturer | EPC |
| Description | GANFET N-CH 80V 18A DIE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.231 | $1.113 | $0.993 | $0.894 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.795 | $0.695 | $0.576 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EPC2202 | Manufacturer | EPC |
|---|---|---|---|
| Description | GANFET N-CH 80V 18A DIE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52238 pcs | Data sheet | EPC2202 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 3mA |
| Vgs (Max) | +5.75V, -4V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | Die Outline (6-Solder Bar) | Series | Automotive, AEC-Q101, eGaN® |
| Rds On (Max) @ Id, Vgs | 17 mOhm @ 11A, 5V | Power Dissipation (Max) | - |
| Packaging | Cut Tape (CT) | Package / Case | Die |
| Other Names | 917-1199-1 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 415pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 4nC @ 5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 18A Surface Mount Die Outline (6-Solder Bar) | Current - Continuous Drain (Id) @ 25°C | 18A |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
