EPC2104

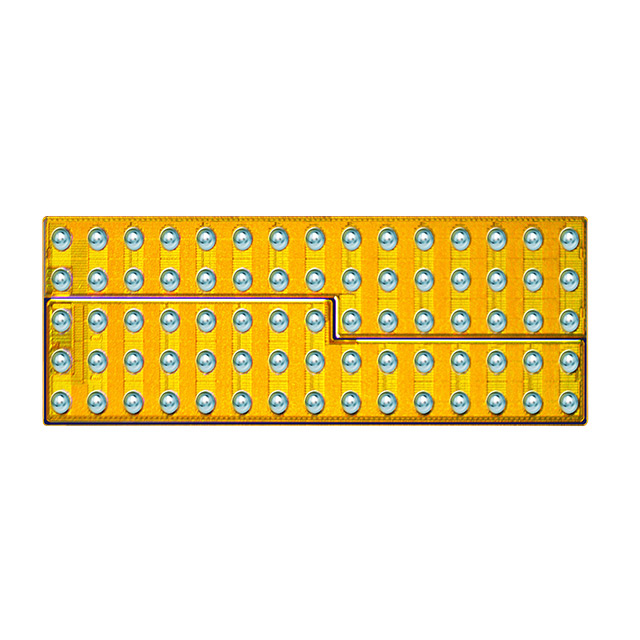

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EPC2104 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EPC2104 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EPC2104 |
|---|---|
| Manufacturer | EPC |
| Description | TRANS GAN SYMMETRICAL HALF BRIDG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $2.00 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EPC2104 | Manufacturer | EPC |
|---|---|---|---|
| Description | TRANS GAN SYMMETRICAL HALF BRIDG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19338 pcs | Data sheet | EPC2104 Datasheet |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 5.5mA |
| Supplier Device Package | Die | Series | eGaN® |
| Rds On (Max) @ Id, Vgs | 6.3 mOhm @ 20A, 5V | Power - Max | - |
| Packaging | Tape & Reel (TR) | Package / Case | Die |
| Other Names | 917-1184-2 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 800pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 7nC @ 5V |
| FET Type | 2 N-Channel (Half Bridge) | FET Feature | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 100V 23A Surface Mount Die |
| Current - Continuous Drain (Id) @ 25°C | 23A |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
