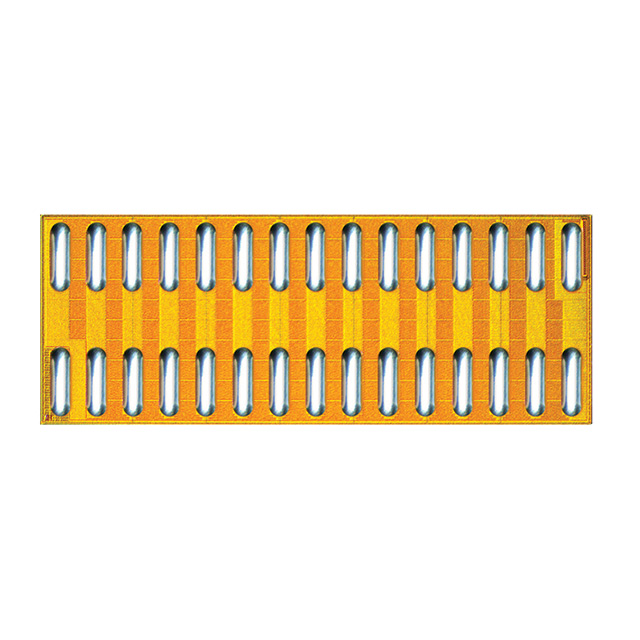

EPC2020ENGR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EPC2020ENGR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EPC2020ENGR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EPC2020ENGR |
|---|---|
| Manufacturer | EPC |
| Description | TRANS GAN 60V 60A BUMPED DIE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $1.645 | $1.433 | $1.38 | $1.327 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EPC2020ENGR | Manufacturer | EPC |
|---|---|---|---|
| Description | TRANS GAN 60V 60A BUMPED DIE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27153 pcs | Data sheet | EPC2020 Datasheet |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 16mA |
| Vgs (Max) | +6V, -4V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | Die | Series | eGaN® |
| Rds On (Max) @ Id, Vgs | 2.2 mOhm @ 31A, 5V | Power Dissipation (Max) | - |
| Packaging | Tape & Reel (TR) | Package / Case | Die |
| Other Names | 917-EPC2020ENGRTR | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1800pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 60A (Ta) Surface Mount Die |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
