EPC2010

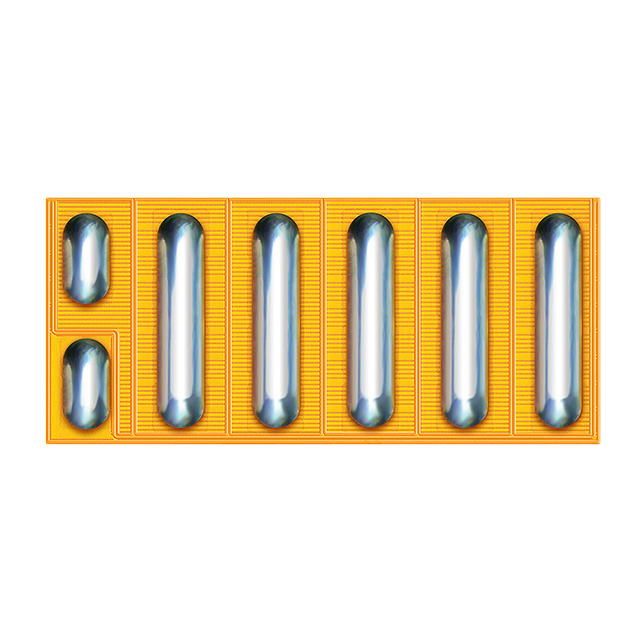

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EPC2010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EPC2010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EPC2010 |
|---|---|
| Manufacturer | EPC |
| Description | TRANS GAN 200V 12A BUMPED DIE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $2.719 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EPC2010 | Manufacturer | EPC |
|---|---|---|---|
| Description | TRANS GAN 200V 12A BUMPED DIE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14107 pcs | Data sheet | EPC2010 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 3mA |
| Vgs (Max) | +6V, -4V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | Die | Series | eGaN® |
| Rds On (Max) @ Id, Vgs | 25 mOhm @ 6A, 5V | Power Dissipation (Max) | - |
| Packaging | Tape & Reel (TR) | Package / Case | Die |
| Other Names | 917-1016-2 | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 540pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 7.5nC @ 5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Drain to Source Voltage (Vdss) | 200V | Detailed Description | N-Channel 200V 12A (Ta) Surface Mount Die |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
