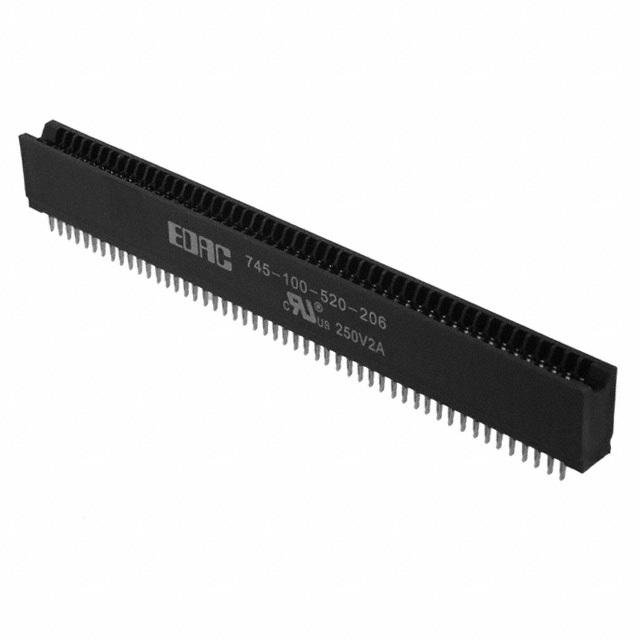

745-100-520-206
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 745-100-520-206 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 745-100-520-206 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 745-100-520-206 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN EDGE DUAL FMALE 100POS .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.012 | $4.556 | $4.442 | $4.101 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.873 | $3.531 | $3.303 | $3.03 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 745-100-520-206 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 100POS .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10729 pcs | Data sheet | Interconnect Solutions Brochure745 Series DatasheetcardEdge Connector Brochure |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | 745 | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 7.45101E+11 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 50 |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester Thermoplastic |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | - | Contact Type | - |
| Contact Material | Copper, Nickel, Tin Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
