AH1806-W-7

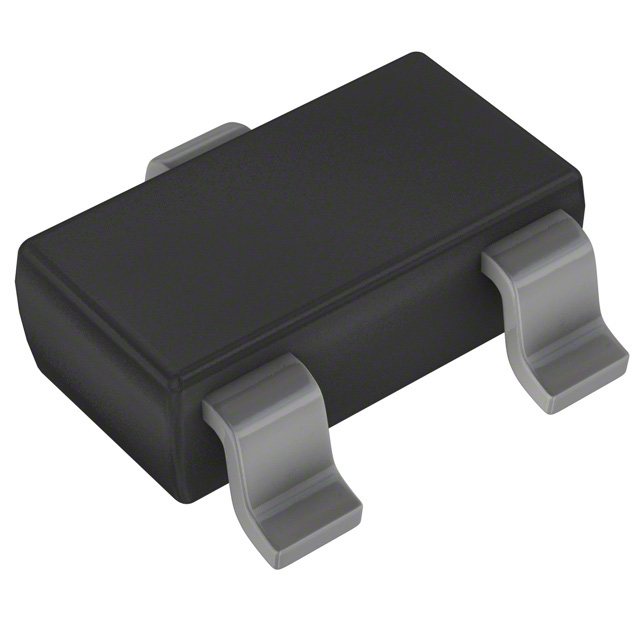

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH1806-W-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH1806-W-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | AH1806-W-7 |
---|---|
Manufacturer | Diodes Incorporated |
Description | MAGNETIC SWITCH OMNIPOLAR SC59 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | 15000 pcs | 30000 pcs |
---|---|---|---|---|---|
$0.059 | $0.055 | $0.051 | $0.05 | $0.048 |
- Product parameter
- Data sheet
Product parameter
Part Number | AH1806-W-7 | Manufacturer | Diodes Incorporated |
---|---|---|---|
Description | MAGNETIC SWITCH OMNIPOLAR SC59 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 428215 pcs | Data sheet | AH1806 |
Category | Sensors, Transducers | Voltage - Supply | 2.5 V ~ 5.5 V |
Test Condition | 25°C | Technology | Hall Effect |
Supplier Device Package | SC-59 | Series | - |
Sensing Range | ±4.5mT Trip, ±4mT Release | Polarization | Either |
Packaging | Tape & Reel (TR) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
Output Type | Open Drain | Other Names | AH1806-W-7DITR AH1806-W-7TR AH1806-W-7TR-ND |
Operating Temperature | -40°C ~ 85°C (TA) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Function | Omnipolar Switch | Features | - |
Detailed Description | Digital Switch Omnipolar Switch Open Drain Hall Effect SC-59 | Current - Supply (Max) | 16µA |
Current - Output (Max) | 2.5mA |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
