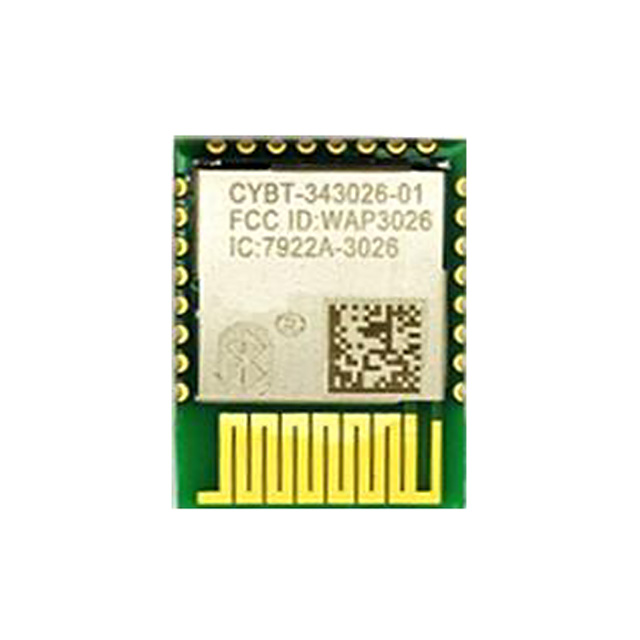

CYBT-343026-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CYBT-343026-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CYBT-343026-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CYBT-343026-01 |
|---|---|
| Manufacturer | Cypress Semiconductor |
| Description | IC RF TXRX+MCU BLE 5.0 MESH 24SM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $5.929 | $5.364 | $4.94 | $4.517 | $4.235 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CYBT-343026-01 | Manufacturer | Cypress Semiconductor |
|---|---|---|---|
| Description | IC RF TXRX+MCU BLE 5.0 MESH 24SM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8083 pcs | Data sheet | CYBT-343026-01 |
| Category | RF/IF and RFID | Voltage - Supply | 2.3 V ~ 3.6 V |
| Utilized IC / Part | - | Series | EZ-BT™ WICED® |
| Serial Interfaces | I²C, I²S, PCM, SPI, UART | Sensitivity | -96.5dBm |
| RF Family/Standard | Bluetooth | Protocol | Bluetooth v4.2 |
| Power - Output | 12dBm | Packaging | Cut Tape (CT) |
| Package / Case | Module | Other Names | 428-4514-1 |
| Operating Temperature | -30°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Modulation | 8DPSK, DQPSK, GFSK |
| Memory Size | 512kB Flash | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency | 2.402GHz ~ 2.48GHz |
| Data Rate | 6Mbps | Current - Transmitting | 60.3mA |
| Current - Receiving | 26.4mA | Antenna Type | Integrated, Trace |
