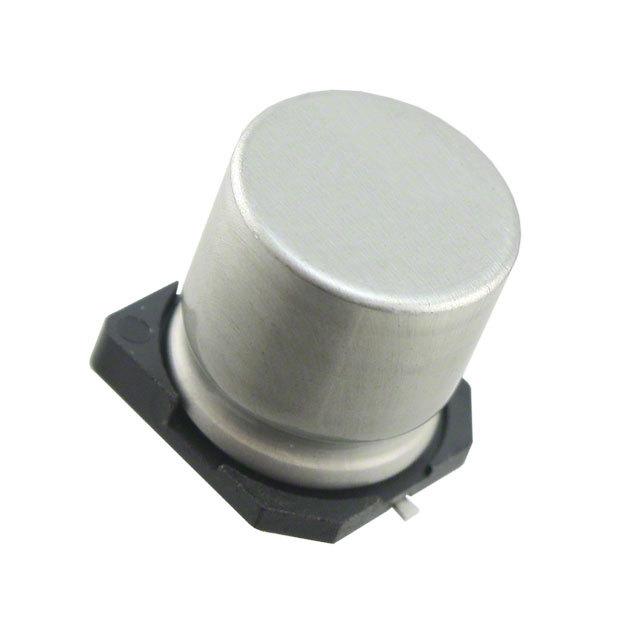

AFK158M16H32T-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AFK158M16H32T-F with confidence from Components-World.HK, 1 Year Warranty
Dowload AFK158M16H32T-F Details in PDFSee Product Specifications for product details.
Buy AFK158M16H32T-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AFK158M16H32T-F |
|---|---|
| Manufacturer | Cornell Dubilier Electronics |
| Description | CAP ALUM 1500UF 20% 16V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.753 | $0.61 | $0.466 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AFK158M16H32T-F | Manufacturer | Cornell Dubilier Electronics |
|---|---|---|---|
| Description | CAP ALUM 1500UF 20% 16V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80476 pcs | Data sheet | AFK Series |
| Category | Capacitors | Voltage - Rated | 16V |
| Tolerance | ±20% | Surface Mount Land Size | 0.531" L x 0.590" W (13.50mm x 15.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | Series | AFK |
| Ripple Current @ Low Frequency | 825mA @ 120Hz | Ripple Current @ High Frequency | 1.1A @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Original-Reel® | Package / Case | Radial, Can - SMD |
| Other Names | 338-2740-6 | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance | 60 mOhms | Height - Seated (Max) | 0.551" (14.00mm) |
| ESR (Equivalent Series Resistance) | 60 mOhm @ 100kHz | Detailed Description | 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 60 mOhm @ 100kHz 5000 Hrs @ 105°C |
| Capacitance | 1500µF | Applications | Automotive, Bypass, Decoupling |
