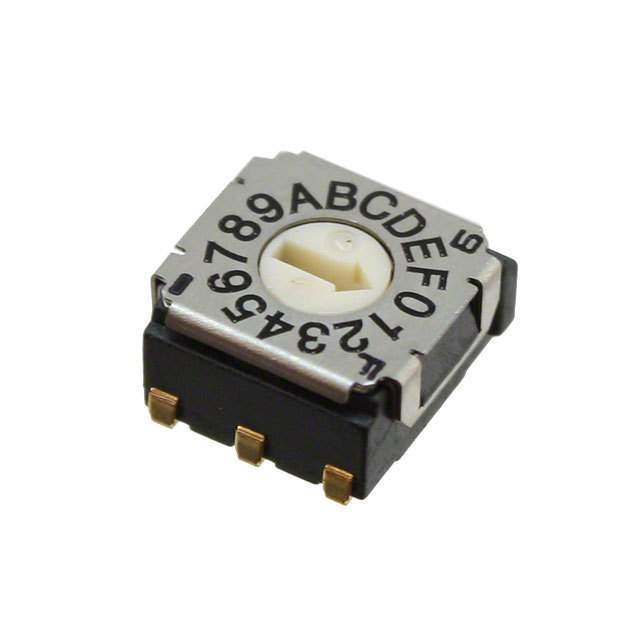

SH-7070TA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SH-7070TA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SH-7070TA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SH-7070TA |
|---|---|
| Manufacturer | Copal Electronics |
| Description | SW ROTARY DIP HEX COMP 100MA 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.615 | $0.527 | $0.483 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SH-7070TA | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SW ROTARY DIP HEX COMP 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76840 pcs | Data sheet | SH-7000 Series |
| Category | Switches | Washable | Yes |
| Voltage Rating | 5VDC | Termination Style | J Lead |
| Series | SH-7000 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tape & Reel (TR) | Other Names | 563-1214-2 SH-7070 TA SH7070TA |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 16 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | - | Manufacturer Standard Lead Time | 11 Weeks |
| Length | 0.287" (7.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.148" (3.75mm) | Features | - |
| Electrical Life | 10,000 Steps | Detailed Description | Dip Switch Hexadecimal Complement 16 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | Hexadecimal Complement |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
