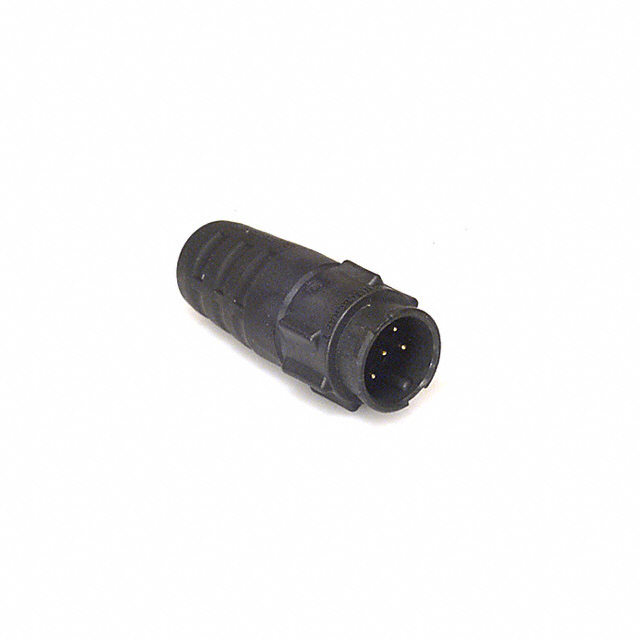

EN3L6M
![EN3L6M](/thumb/medium/93/EN3L6M.jpg)
![](/upfile/linecard/medium_Conxall-Switchcraft.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EN3L6M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EN3L6M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | EN3L6M |
---|---|
Manufacturer | Conxall / Switchcraft |
Description | CONN RCPT MALE 6POS SOLDER CUP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | EN3L6M | Manufacturer | Conxall / Switchcraft |
---|---|---|---|
Description | CONN RCPT MALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5210 pcs | Data sheet | EN3 Series BulletinEN3 Series Part NumberingEN3LxMxx Drawing |
Category | Connectors, Interconnects | Voltage Rating | 250VAC/DC |
Termination | Solder Cup | Shielding | Unshielded |
Shell Size, MIL | - | Shell Size - Insert | - |
Shell Material | Thermoplastic | Shell Finish | - |
Series | EN3® | Packaging | Bulk |
Other Names | SC1182 | Orientation | Keyed |
Operating Temperature | -40°C ~ 65°C | Number of Positions | 6 |
Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insert Material | Elastomer | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
Features | Backshell, Cable Clamp | Fastening Type | Bayonet Lock |
Detailed Description | 6 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 7.5A |
Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
Color | Black | Cable Opening | 0.160" ~ 0.265" (4.06mm ~ 6.73mm) |
Backshell Material, Plating | Thermoplastic | Applications | General Purpose, Instrumentation, Marine, Medical |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
