Home > Products > Connectors, Interconnects > Barrel - Audio Connectors > BPJF02X

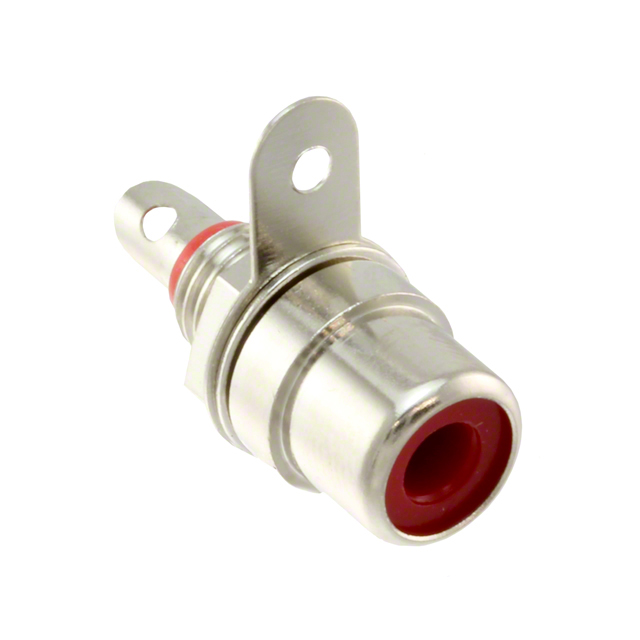

BPJF02X

BPJF02X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BPJF02X with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number BPJF02X
Manufacturer Conxall / Switchcraft
Description CONN RCA JACK MONO 3.2MM PNL MT
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 61105 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs
$0.933$0.753$0.69$0.659
100 pcs250 pcs500 pcs1000 pcs
$0.627$0.549$0.533$0.51

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.933

Product parameter

Part Number BPJF02X Manufacturer Conxall / Switchcraft
Description CONN RCA JACK MONO 3.2MM PNL MT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 61105 pcs Data sheet BPJF Drawing
Category Connectors, Interconnects Voltage - Rated -
Thread Size 1/4"-32 Termination Solder Eyelet(s)
Signal Lines Mono Shielding Unshielded
Series - Panel Hole Size 0.402" (10.20mm)
Packaging Bulk Other Names BPJF02
BPJF02-ND
BPJF02X-ND
SC2439
Operating Temperature - Number of Positions/Contacts 2 Conductors, 2 Contacts
Mounting Type Panel Mount Mating Length/Depth -
Manufacturer Standard Lead Time 12 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Internal Switch(s) Does Not Contain Switch Insulation Color Red
Industry Recognized Mating Diameter 3.20mm ID, 9.00mm OD (RCA) Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material - Gender Female
Features Grounding Tab, Mounting Hardware Detailed Description 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
Contact Material - Plating Nickel Contact Material Brass
Connector Type Phono (RCA) Jack Cable Opening -
Body Material Brass Body Color Silver
Actual Diameter 0.134" (3.40mm ID), 0.325" (8.25mm OD)
