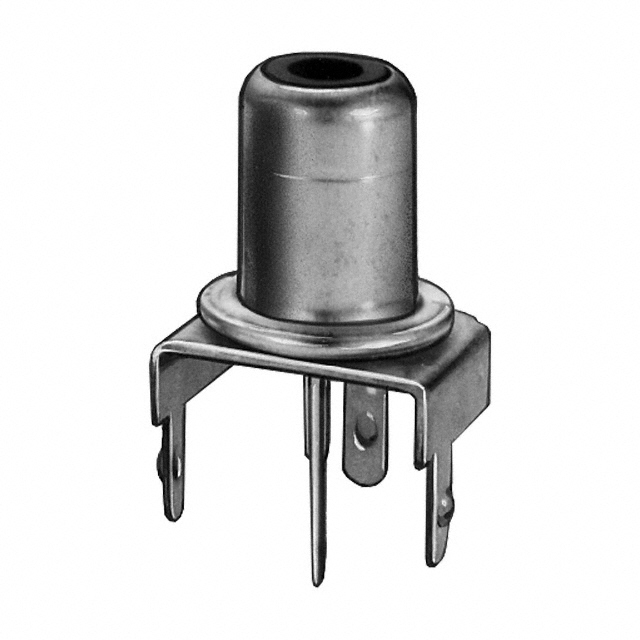

3514PC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3514PC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3514PC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3514PC |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3514PC | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5872 pcs | Data sheet | Jacks & Plugs |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | - | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | Mounting Type | Through Hole |
| Mating Length/Depth | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | Black |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | Includes | - |
| Housing Material | - | Gender | Female |
| Features | Mounting Hardware | Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
| Contact Material - Plating | Tin | Contact Material | Brass |
| Connector Type | Phono (RCA) Jack | Cable Opening | - |
| Body Material | Steel | Body Color | Silver |
| Actual Diameter | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
