SBBTH1520-1

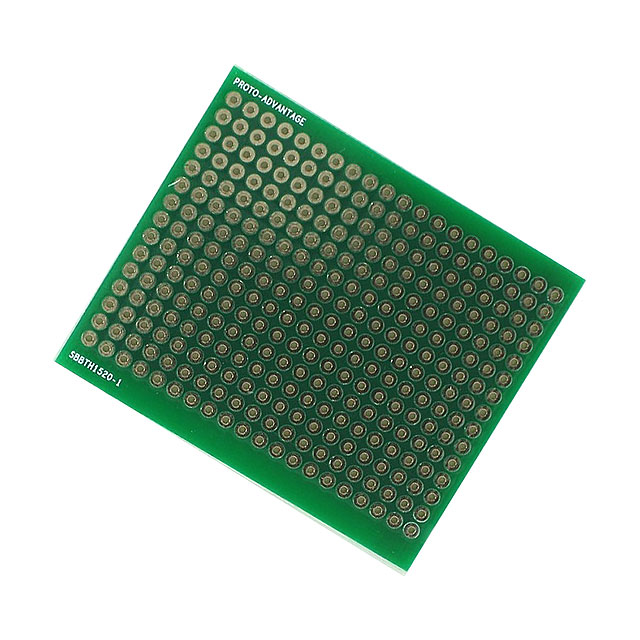

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBBTH1520-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBBTH1520-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBBTH1520-1 |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | BREADBOARD GENERAL PURPOSE PTH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.344 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBBTH1520-1 | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | BREADBOARD GENERAL PURPOSE PTH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24405 pcs | Data sheet | SBBTH1520-1 |
| Category | Prototyping, Fabrication Products | Size / Dimension | 2.10" L x 1.75" W (53.3mm x 44.5mm) |
| Series | Proto-Advantage | Proto Board Type | Breadboard, General Purpose |
| Plating | Plated Through Hole (PTH) | Pitch | 0.100" (2.54mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | FR4 Epoxy Glass |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Hole Diameter | 0.039" (1.00mm) | Edge Contacts | - |
| Detailed Description | Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm) | Circuit Pattern | Pad Per Hole (Round) |
| Board Thickness | 0.063" (1.60mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
