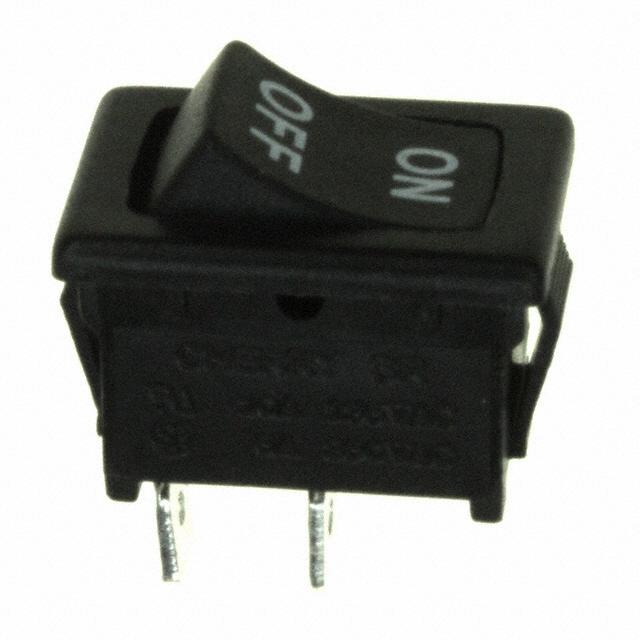

SRB22A2DBBNN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRB22A2DBBNN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRB22A2DBBNN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRB22A2DBBNN |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH ROCKER SPST 10A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.349 | $0.321 | $0.307 | $0.293 | $0.279 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.272 | $0.265 | $0.223 | $0.216 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRB22A2DBBNN | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH ROCKER SPST 10A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97623 pcs | Data sheet | SRB Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Switch Function | On-Off |
| Series | SR | Panel Cutout Dimensions | Rectangular - 19.10mm x 12.90mm |
| Packaging | Bulk | Other Names | CH760 |
| Operating Temperature | -20°C ~ 65°C | Mounting Type | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | - |
| Electrical Life | 6,000 Cycles | Detailed Description | Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In |
| Current Rating | 10A (AC) | Color - Actuator/Cap | Black |
| Circuit | SPST | Actuator Type | Concave (Curved) |
| Actuator Marking | On - Off, Vertical |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
