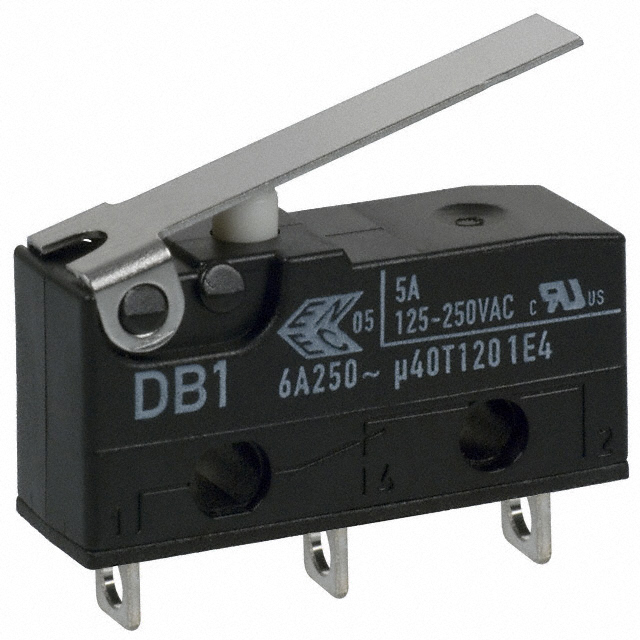

DB1C-A1LB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB1C-A1LB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DB1C-A1LB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DB1C-A1LB |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION SPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.891 | $0.824 | $0.772 | $0.755 | $0.601 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.566 | $0.532 | $0.498 | $0.463 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DB1C-A1LB | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74388 pcs | Data sheet | DB Series DatasheetDB1C-A1LB Drawing |
| Category | Switches | Voltage Rating - DC | 48V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | DB |
| Release Force | - | Pretravel | 0.157" (4.0mm) |
| Packaging | Bulk | Overtravel | 0.079" (2.0mm) |
| Other Names | CH884 DB1C-A1LB-ND DB1CA1LB DB1CA1LB-ND Q1139446A |
Operating Temperature | -40°C ~ 120°C |
| Operating Position | 0.420" (10.7mm) | Operating Force | 60gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 15,000,000 Cycles | Manufacturer Standard Lead Time | 29 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP50 - Dust Protected |
| Features | - | Electrical Life | 6,000 Cycles |
| Differential Travel | 0.020" (0.5mm) | Current Rating | 5A (AC), 1A (DC) |
| Circuit | SPDT | Actuator Type | Lever, Straight |
