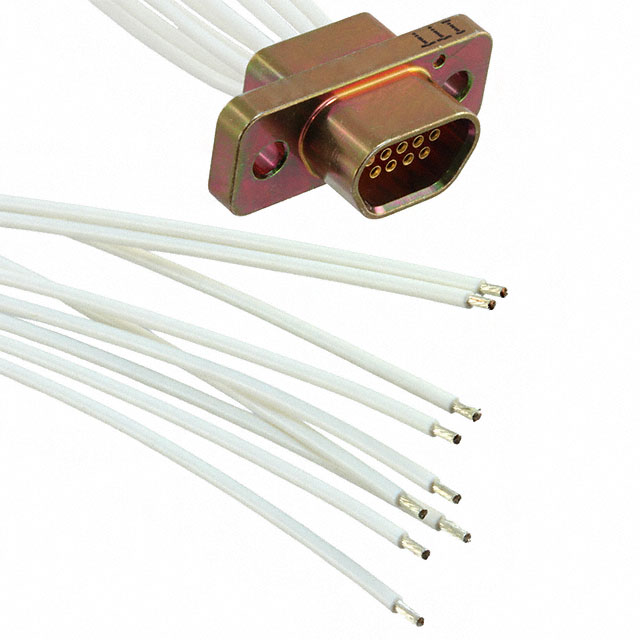

MDM-9SCBR-F222
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDM-9SCBR-F222 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDM-9SCBR-F222 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | MDM-9SCBR-F222 |
---|---|
Manufacturer | Cannon |
Description | CONN MICRO-D RCPT 9POS R/A SLDR |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
---|---|---|---|---|---|
$39.027 | $36.733 | $31.453 |
- Product parameter
- Data sheet
Product parameter
Part Number | MDM-9SCBR-F222 | Manufacturer | Cannon |
---|---|---|---|
Description | CONN MICRO-D RCPT 9POS R/A SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 977 pcs | Data sheet | Microminiature Catalog |
Category | Connectors, Interconnects | Wire Gauge | - |
Voltage Rating | - | Termination | Solder |
Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | Shell Material, Finish | Aluminum, Yellow Chromate Cadmium Plated |
Series | 83513-Style Micro D Metal Shell (MDM) | Packaging | Bulk |
Other Names | 096511-0890 1003-2417 |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions | 9 |
Mounting Type | Panel Mount, Through Hole, Right Angle | Material Flammability Rating | - |
Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
Flange Feature | Housing/Shell (Unthreaded) | Features | Shielded |
Detailed Description | 9 Position D-Type, Micro-D Receptacle, Female Sockets Connector | Current Rating | 3A |
Contact Type | Signal | Contact Material | Copper Alloy |
Contact Form | - | Contact Finish Thickness | - |
Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
Connector Style | D-Type, Micro-D | Color | - |
Backset Spacing | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
