SD08H0SB

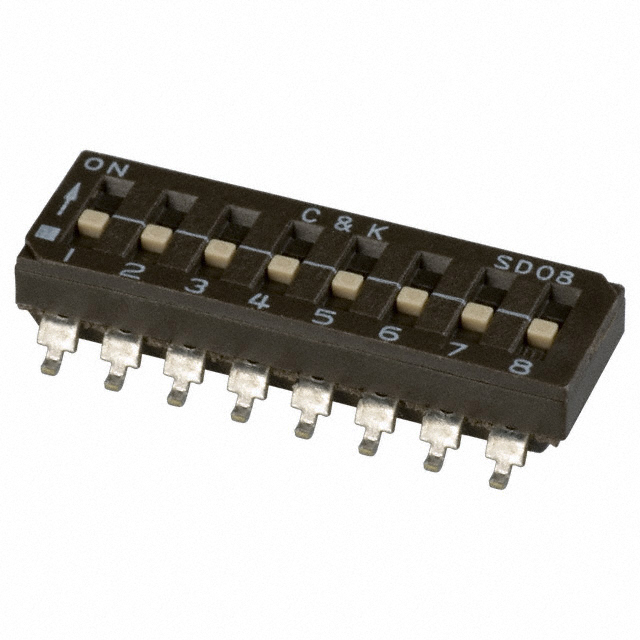

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD08H0SB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD08H0SB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD08H0SB |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 100MA 25V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.041 | $1.01 | $0.958 | $0.895 | $0.874 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.749 | $0.729 | $0.625 | $0.572 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD08H0SB | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 25V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58835 pcs | Data sheet | SD Series Dip Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 25VDC | Termination Style | Gull Wing |
| Series | SD | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *SD08H0SB CKN6126 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 13 Weeks |
| Length | 0.858" (21.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.170" (4.33mm) | Features | Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC |
| Current Rating | 100mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphthalamide (PPA) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
