Home > Products > Switches > Rocker Switches > D201J12S205PQA

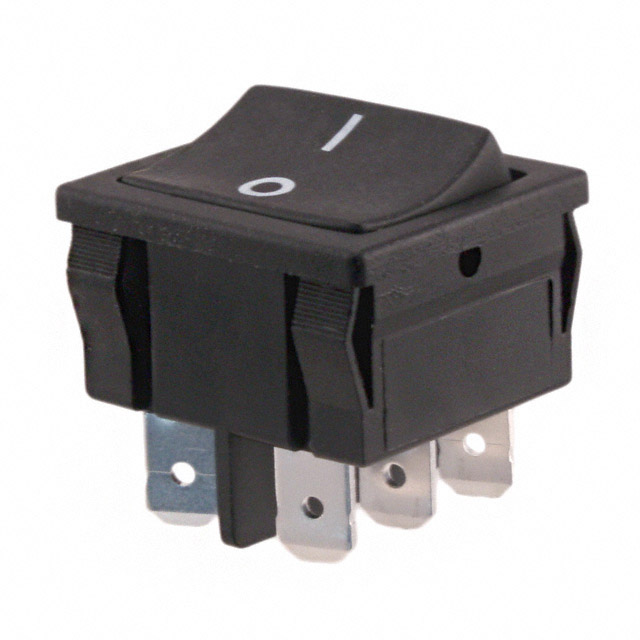

D201J12S205PQA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D201J12S205PQA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D201J12S205PQA
Manufacturer	C&K
Description	SWITCH ROCKER DPDT 4A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20891 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.116	$2.014	$1.913	$1.813
	$1.788	$1.737	$1.662	$1.46

Product parameter
Data sheet

Product parameter

Part Number	D201J12S205PQA	Manufacturer	C&K
Description	SWITCH ROCKER DPDT 4A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20891 pcs	Data sheet	D Series Mini Snap-in Power Rocker Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-On
Series	D	Panel Cutout Dimensions	Rectangular - 22.53mm x 19.20mm
Packaging	Bulk	Other Names	*D201J12S205PQA CKN9836
Operating Temperature	-30°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 4A (AC) 125V Panel Mount, Snap-In
Current Rating	4A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	O -
