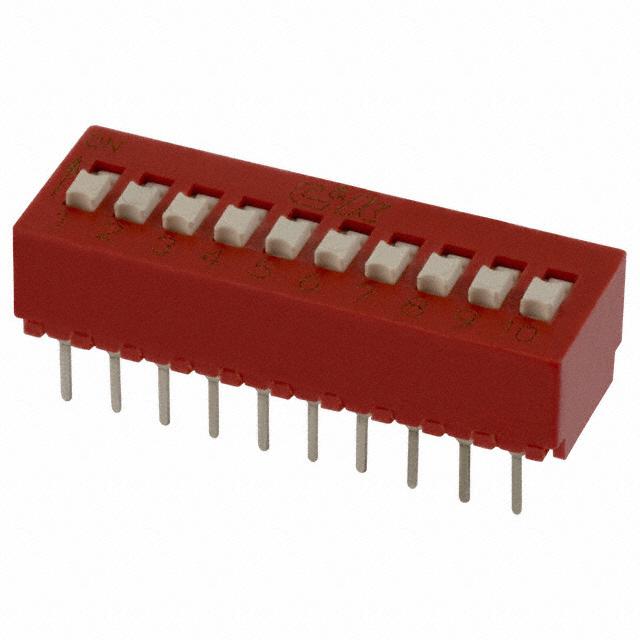

BD10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BD10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BD10 |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 100MA 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 19 pcs | 38 pcs | 57 pcs | 114 pcs |
|---|---|---|---|---|---|
| $0.623 | $0.586 | $0.562 | $0.526 | $0.514 | |
| 266 pcs | 513 pcs | 1007 pcs | 5016 pcs | ||
| $0.454 | $0.43 | $0.383 | $0.335 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BD10 | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65056 pcs | Data sheet | BD Series Standard Profile Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 5VDC | Termination Style | PC Pin |
| Series | BD | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *BD10 CKN3009 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000 Cycles | Manufacturer Standard Lead Time | 24 Weeks |
| Length | 1.080" (27.43mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.297" (7.54mm) | Features | - |
| Electrical Life | 10,000 Cycles | Detailed Description | Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Phosphor Bronze |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polybutylene Terephthalate (PBT), Glass Filled | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
