Home > Products > Switches > Toggle Switches > 7215P3Y4ZQE

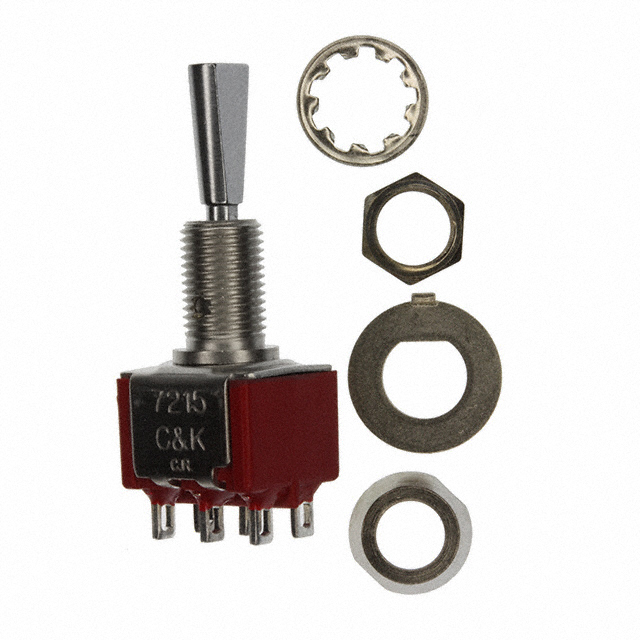

7215P3Y4ZQE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7215P3Y4ZQE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7215P3Y4ZQE
Manufacturer	C&K
Description	SWITCH TOGGLE SP3T 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 9846 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.81	$4.548	$4.418	$4.288
	$4.158	$4.028	$3.378

Product parameter
Data sheet

Product parameter

Part Number	7215P3Y4ZQE	Manufacturer	C&K
Description	SWITCH TOGGLE SP3T 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9846 pcs	Data sheet	7000 Series Mini Toggle Datasheet Wiring for 3-Way Switches
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	Mom-On-Mom	Series	7000
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Other Names	*7215P3Y4ZQE CKN9783	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Jumper needed to achieve triple throw	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch SP3T Panel Mount	Current Rating	5A (AC/DC)
Circuit	SP3T	Bushing Thread	1/4-40
Actuator Type	Flat Anti-Rotation	Actuator Material	Brass, Chrome Plated
Actuator Length	11.43mm
