PTV09A-2015F-B103

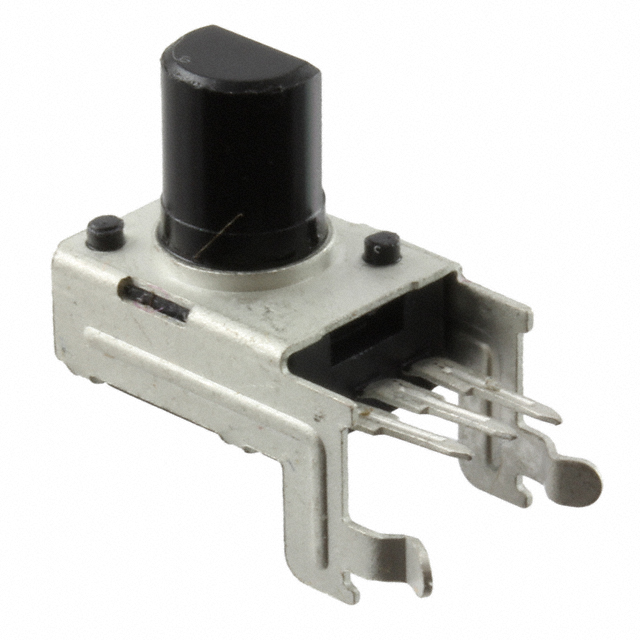

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTV09A-2015F-B103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTV09A-2015F-B103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTV09A-2015F-B103 |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | POT 10K OHM 1/20W CARBON LINEAR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.298 | $0.267 | $0.241 | $0.232 | $0.219 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.211 | $0.198 | $0.163 | $0.133 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTV09A-2015F-B103 | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | POT 10K OHM 1/20W CARBON LINEAR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 173379 pcs | Data sheet | PTV09 Series |
| Category | Potentiometers, Variable Resistors | Tolerance | ±20% |
| Termination Style | PC Pins, Board Locks | Temperature Coefficient | - |
| Taper | Linear | Size - Body | Rectangular - 0.610" x 0.382" Face x 0.268" H (15.50mm x 9.70mm x 6.80mm) |
| Series | Pro Audio PTV09 | Rotation | 280° |
| Resistive Material | Carbon | Resistance (Ohms) | 10k |
| Power (Watts) | 0.05W, 1/20W | Packaging | Tray |
| Other Names | PTV09A2015FB103 | Number of Turns | 1 |
| Number of Gangs | 1 | Mounting Type | Through Hole, Snap In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1 Turn Carbon 0.05W, 1/20W PC Pins, Board Locks |
| Bushing Thread | - | Built in Switch | None |
| Adjustment Type | Side Adjustment | Actuator Type | Flatted |
| Actuator Length | 0.591" (15.00mm) | Actuator Diameter | 0.236" (6.00mm) |
