Home > Products > Inductors, Coils, Chokes > Fixed Inductors > SCC5D23-8R2

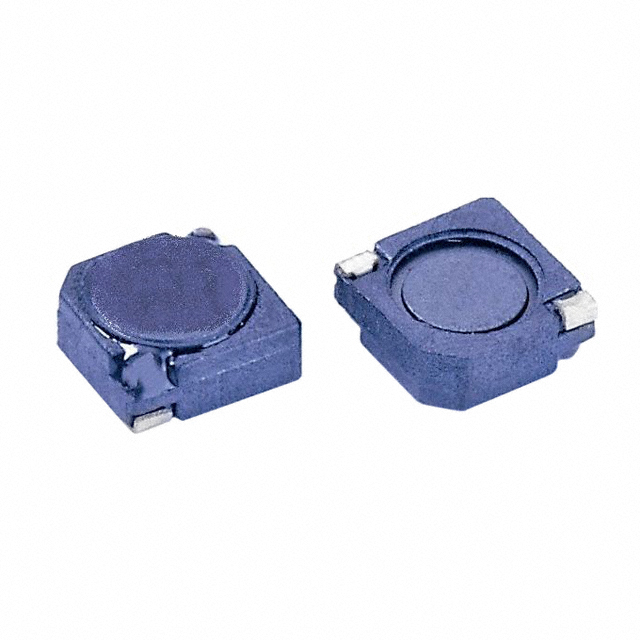

SCC5D23-8R2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SCC5D23-8R2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SCC5D23-8R2
Manufacturer	Bel
Description	FIXED IND 8.2UH 1.75A 103 MOHM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4146 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SCC5D23-8R2	Manufacturer	Bel
Description	FIXED IND 8.2UH 1.75A 103 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4146 pcs	Data sheet	SCC5D23 Series
Category	Inductors, Coils, Chokes	Type	-
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)	Shielding	Shielded
Series	SCC5D23	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	8.2µH
Height - Seated (Max)	0.098" (2.50mm)	Frequency - Self Resonant	-
Detailed Description	8.2µH Shielded Inductor 1.75A 103 mOhm Max Nonstandard	DC Resistance (DCR)	103 mOhm Max
Current Rating	1.75A	Current - Saturation	1.12A
