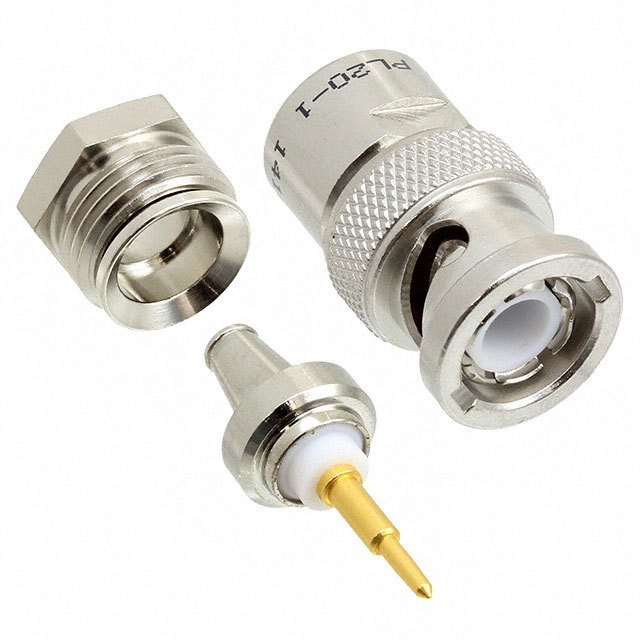

PL20-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PL20-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PL20-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PL20-1 |
|---|---|
| Manufacturer | Bel |
| Description | CONN BNC PLUG STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.852 | $9.798 | $9.534 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PL20-1 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN BNC PLUG STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4012 pcs | Data sheet | PL20 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Wrench Clamp | Series | 20 |
| Packaging | Bulk | Other Names | 1097-1229 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | - | Detailed Description | BNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | - | Cable Group | RG-58 |
| Body Material | Brass | Body Finish | Nickel |
