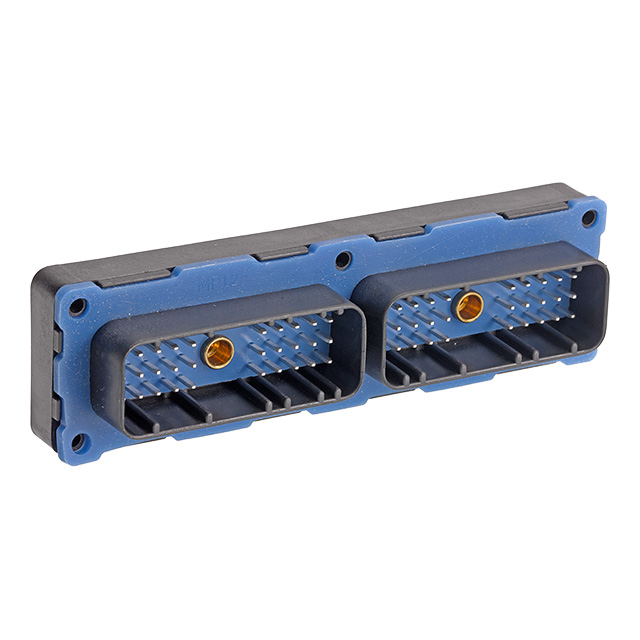

581-01-60-001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 581-01-60-001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 581-01-60-001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 581-01-60-001 |
|---|---|
| Manufacturer | Bel |
| Description | SHS 1.5MM 60POS SLDHEADR F BLK |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $15.493 | $13.555 | $10.479 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 581-01-60-001 | Manufacturer | Bel |
|---|---|---|---|
| Description | SHS 1.5MM 60POS SLDHEADR F BLK | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3513 pcs | Data sheet | ModICE®, SHS BrochureSHS Assembly Manual581-01-60-001,2 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SHS |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 581 01 60 001 581 01 60 001-ND 5810160001 C581-01-60-001 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | - | Insulation Color | Black |
| Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof | Features | Ferrite Filter |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole, Right Angle 60 position |
| Current Rating | 10A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.166" (4.22mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | Automotive |
