146-0403-107
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 146-0403-107 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 146-0403-107 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 146-0403-107 |
|---|---|
| Manufacturer | Bel |

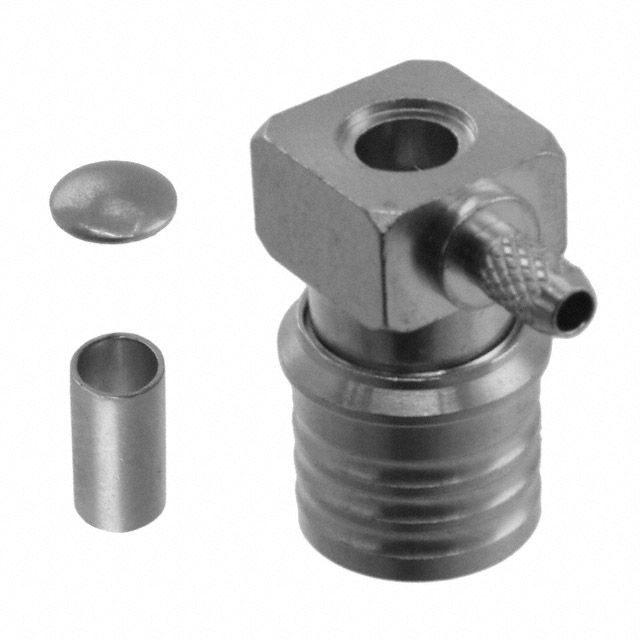

| Description | CONN QMA PLUG R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.236 | $3.096 | $2.814 | $2.673 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.603 | $2.322 | $2.181 | $1.928 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 146-0403-107 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN QMA PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19260 pcs | Data sheet | 146-0403-107 Drawing146-0403-107 Assem InstrkwiQMAte™ Series Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Crimp | Series | kwiQMAte™ |
| Packaging | Bulk | Other Names | 1460403107 J10078 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Sleeve | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 12.4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | QMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | QMA | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-161, 174, 188, 316, LMR-100 |
| Body Material | Brass | Body Finish | Tri-Alloy |
