ACPL-K72T-000E

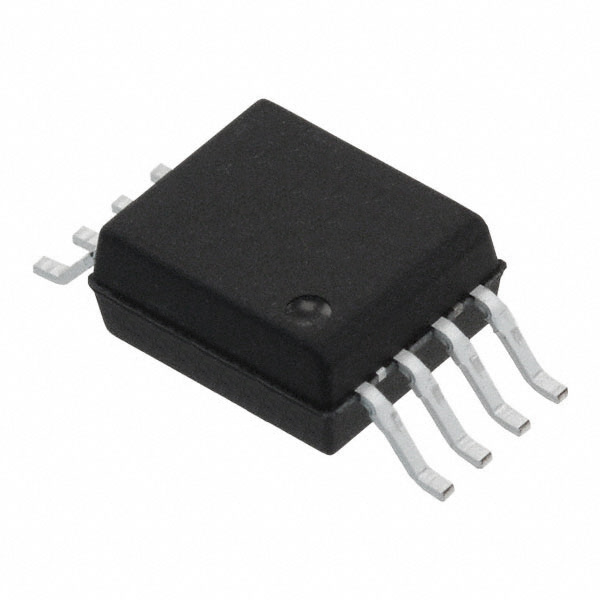

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACPL-K72T-000E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACPL-K72T-000E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACPL-K72T-000E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 5KV PUSH PULL 8SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1680 pcs | ||||
|---|---|---|---|---|---|
| $0.731 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACPL-K72T-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 5KV PUSH PULL 8SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43980 pcs | Data sheet | ACPL-K71T/2T/4T/5T |
| Category | Isolators | Voltage - Supply | 3 V ~ 5.5 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.5V |
| Supplier Device Package | 8-SO Stretched | Series | - |
| Rise / Fall Time (Typ) | 10ns, 10ns | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Packaging | Tube | Package / Case | 8-SOIC (0.268", 6.81mm Width) |
| Output Type | Push-Pull, Totem Pole | Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 25kV/µs CMTI 8-SO Stretched |
| Data Rate | - | Current - DC Forward (If) (Max) | 20mA |
| Common Mode Transient Immunity (Min) | 25kV/µs |
