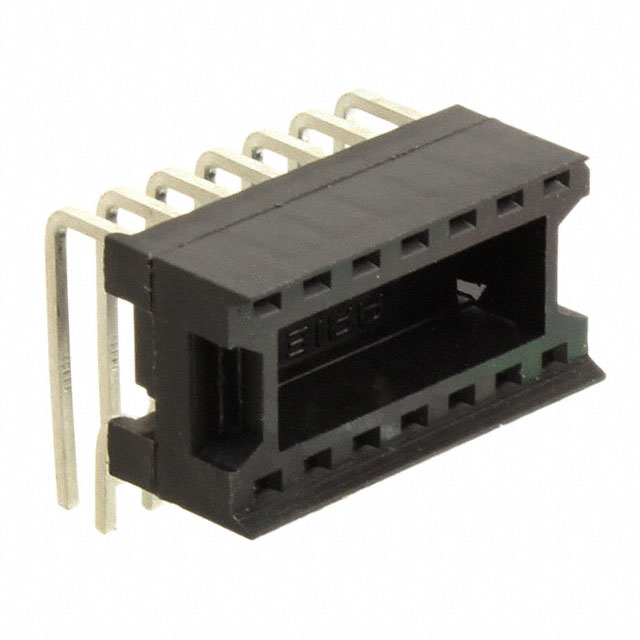

14-820-90T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 14-820-90T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 14-820-90T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 14-820-90T |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN IC DIP SOCKET 14POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.839 | $2.293 | $1.856 | $1.528 | $1.419 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 14-820-90T | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27162 pcs | Data sheet | 800 Series Horizontal |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.145" (3.68mm) | Termination | Solder |
| Series | Vertisockets™ 800 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 14-820-90T-ND A812AR |
Operating Temperature | - |
| Number of Positions or Pins (Grid) | 14 (2 x 7) | Mounting Type | Through Hole, Right Angle, Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Features | Closed Frame |
| Current Rating | 1.5A | Contact Resistance | - |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
