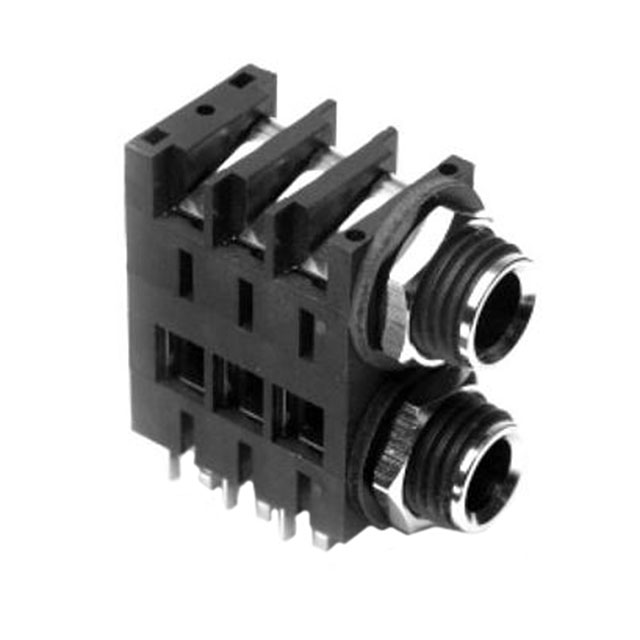

ACJS-MHDC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACJS-MHDC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACJS-MHDC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACJS-MHDC |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN JACK DUAL STEREO 1/4" R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.089 | $1.046 | $0.959 | $0.915 | $0.871 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.762 | $0.741 | $0.632 | $0.588 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACJS-MHDC | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN JACK DUAL STEREO 1/4" R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63382 pcs | Data sheet | ACJS-MHDC Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | - |
| Series | M | Panel Hole Size | 0.449" (11.40mm) |
| Packaging | Box | Other Names | 889-1816 |
| Operating Temperature | -25°C ~ 70°C | Number of Positions/Contacts | 2 Sets of 3 Conductors, 12 Contacts |
| Mounting Type | Panel Mount, Through Hole | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone | Includes | - |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Gender | Female |
| Features | Mounting Hardware | Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder |
| Contact Material - Plating | - | Contact Material | - |
| Connector Type | Phone Jack, Dual | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
