2946-6012

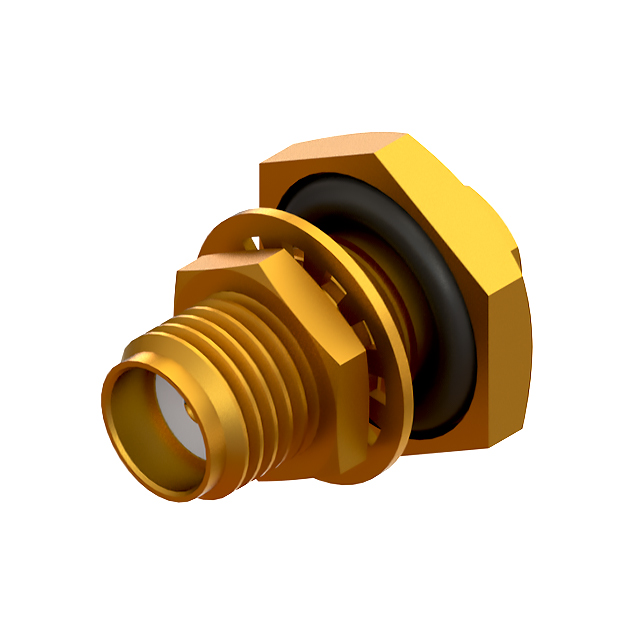

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2946-6012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2946-6012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 2946-6012 |
---|---|
Manufacturer | Amphenol SV Microwave |
Description | CONN SMA JACK STR 50OHM SOLDER |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
---|---|---|---|---|---|
$13.677 | $12.348 | $11.831 | |||
50 pcs | 100 pcs | 250 pcs | |||
$11.091 | $10.721 | $10.13 |
- Product parameter
- Data sheet
Product parameter
Part Number | 2946-6012 | Manufacturer | Amphenol SV Microwave |
---|---|---|---|
Description | CONN SMA JACK STR 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 3645 pcs | Data sheet | 2946-6012 Drawing |
Category | Connectors, Interconnects | Shield Termination | Solder |
Series | - | Packaging | Bulk |
Operating Temperature | - | Number of Ports | 1 |
Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
Moisture Sensitivity Level (MSL) | Not Applicable | Mating Cycles | 500 |
Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insertion Loss | - | Ingress Protection | - |
Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
Housing Color | Gold | Frequency - Max | 18GHz |
Features | - | Fastening Type | Threaded |
Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
Contact Termination | Solder | Connector Type | Jack, Female Socket |
Connector Style | SMA | Center Contact Plating | Gold |
Center Contact Material | Beryllium Copper | Cable Group | RG-405 (.085" Semi Rigid) |
Body Material | Stainless Steel | Body Finish | Gold |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
