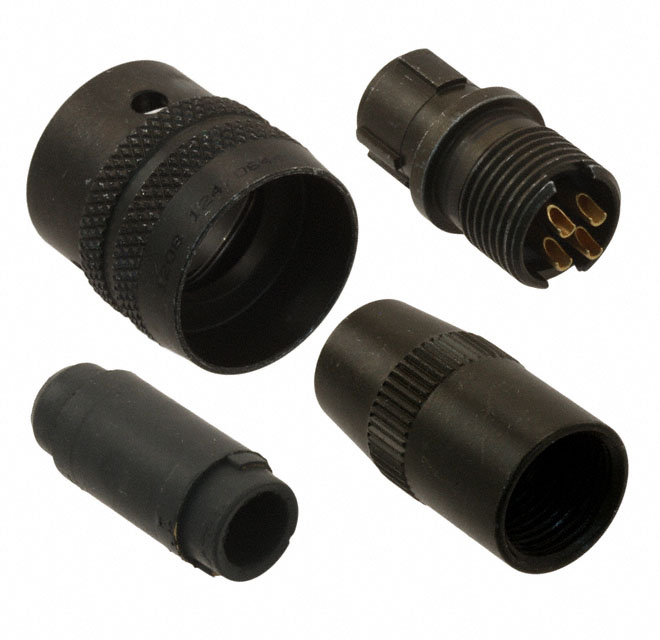

PT06W-8-4S
![PT06W-8-4S](/thumb/medium/8e/PT06W-8-4S.jpg)
![](/upfile/linecard/medium_Amphenol-Industrial.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT06W-8-4S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT06W-8-4S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | PT06W-8-4S |
---|---|
Manufacturer | Amphenol Industrial |
Description | CONN PLUG FMALE 4POS SOLDER CUP |
Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
---|---|---|---|---|---|
$19.564 | $17.164 | $16.541 | $15.385 | ||
50 pcs | 100 pcs | 250 pcs | |||
$14.585 | $12.895 | $12.006 |
- Product parameter
- Data sheet
Product parameter
Part Number | PT06W-8-4S | Manufacturer | Amphenol Industrial |
---|---|---|---|
Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
Quantity Available | 3158 pcs | Data sheet | PT Series Catalog |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder Cup | Shielding | Unshielded |
Shell Size, MIL | - | Shell Size - Insert | 8-4 |
Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
Other Names | PT06W84S U71-121608-04S |
Orientation | N (Normal) |
Operating Temperature | -55°C ~ 125°C | Number of Positions | 4 |
Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
Insert Material | Neoprene | Ingress Protection | - |
Features | Backshell, Coupling Nut | Fastening Type | Bayonet Lock |
Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | - |
Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
Color | Olive Drab | Cable Opening | - |
Backshell Material, Plating | Aluminum, Olive Drab Cadmium | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
