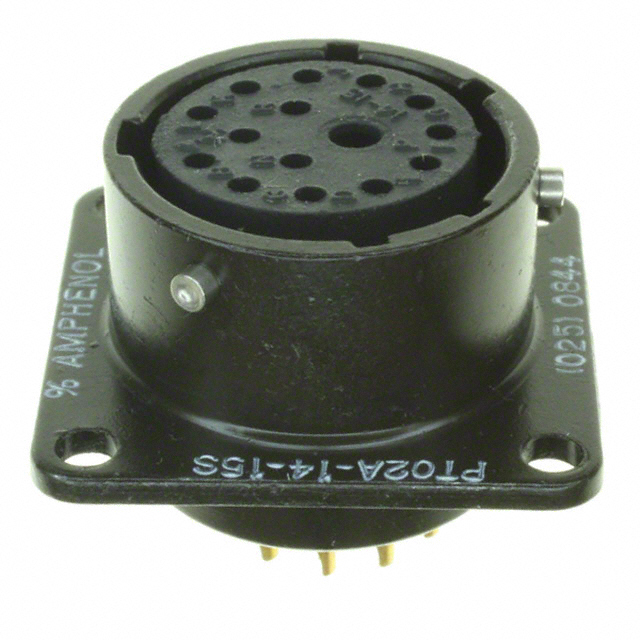

PT02A-14-15S(025)
![PT02A-14-15S(025)](/thumb/medium/f9/PT02A-14-15S%28025%29.jpg)
![](/upfile/linecard/medium_Amphenol-Industrial.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT02A-14-15S(025) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT02A-14-15S(025) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | PT02A-14-15S(025) |
---|---|
Manufacturer | Amphenol Industrial |
Description | CONN RCPT FMALE 15POS SOLDER CUP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
---|---|---|---|---|---|
$7.797 | $6.751 | $6.65 | $6.278 | ||
50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
$6.245 | $5.873 | $5.57 | $5.435 |
- Product parameter
- Data sheet
Product parameter
Part Number | PT02A-14-15S(025) | Manufacturer | Amphenol Industrial |
---|---|---|---|
Description | CONN RCPT FMALE 15POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6462 pcs | Data sheet | PT Series CatalogPT02A Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder Cup | Shielding | Unshielded |
Shell Size, MIL | - | Shell Size - Insert | 14-15 |
Shell Material | Aluminum | Shell Finish | Black Zinc Cobalt |
Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
Other Names | C93-146214-15S PT02A1415S025 |
Orientation | N (Normal) |
Operating Temperature | -55°C ~ 125°C | Number of Positions | 15 |
Mounting Type | Panel Mount | Mounting Feature | Flange |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insert Material | Neoprene | Ingress Protection | - |
Features | - | Fastening Type | Bayonet Lock |
Detailed Description | 15 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | - |
Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
Color | Black | Cable Opening | - |
Backshell Material, Plating | - | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
