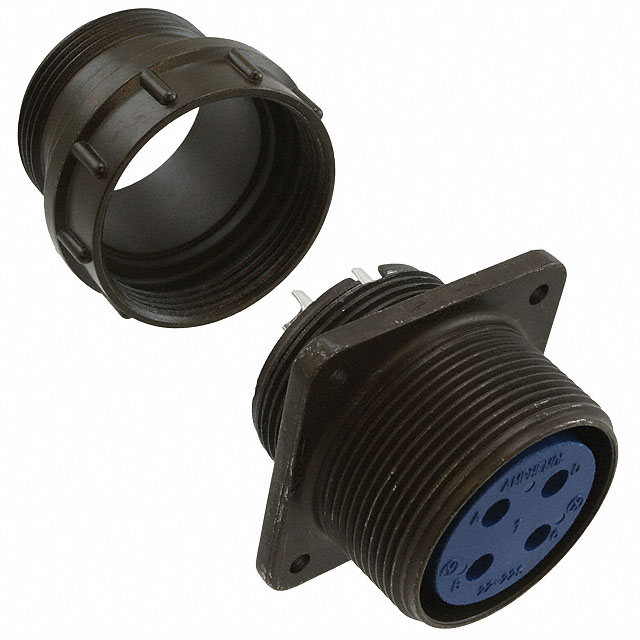

97-3100A-22-22S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 97-3100A-22-22S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 97-3100A-22-22S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 97-3100A-22-22S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 97-3100A-22-22S | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 5050 pcs | Data sheet | 97 Series Catalog97-3100A Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 22-22 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | 97 | Packaging | Bulk |
| Other Names | 97-3100A22-22S 973100A2222S U10-820012-22S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 4 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insert Material | - |
| Ingress Protection | - | Features | Backshell |
| Fastening Type | Threaded | Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Female Sockets | Color | Olive Drab |
| Cable Opening | - | Backshell Material, Plating | Aluminum Alloy, Olive Drab Chromate over Cadmium |
| Applications | Automotive, Industrial |
