272301

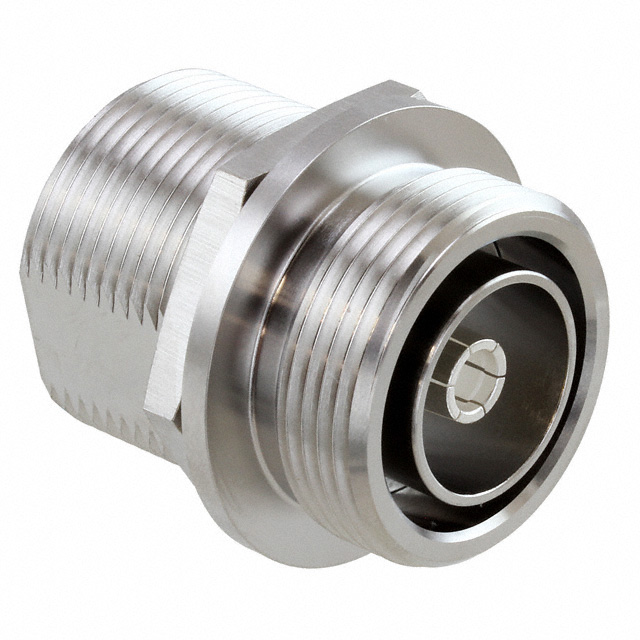

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 272301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 272301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 272301 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK-JACK 7/16 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $25.434 | $23.938 | $23.19 | $21.693 | $20.497 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 272301 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK 7/16 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1769 pcs | Data sheet | 272301 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX2136 | Operating Temperature | -55°C ~ 155°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | 2 pcs - 1 Connector, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Features | Low PIM |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohm | Convert To (Adapter End) | 7/16 Jack, Female Socket |
| Convert From (Adapter End) | 7/16 Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Silver |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | White Bronze | Adapter Type | Jack to Jack |
| Adapter Series | 7/16 DIN to 7/16 DIN |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
