242201RP

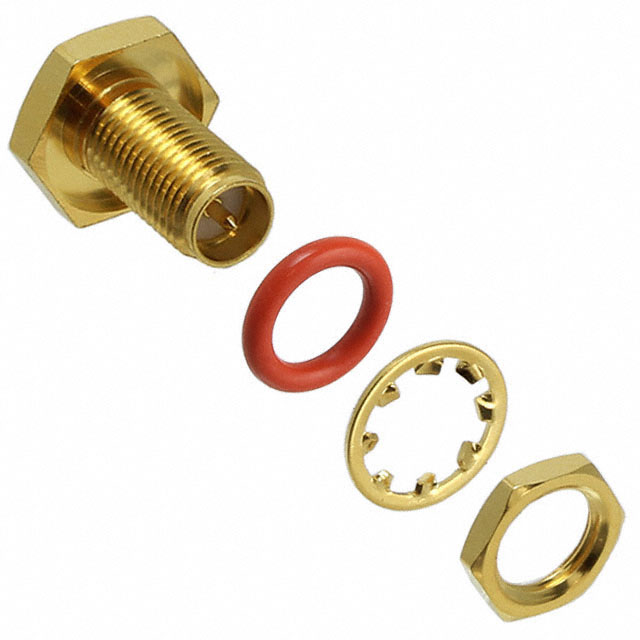

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 242201RP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 242201RP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 242201RP |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT UMC JACK-RP SMA JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.362 | $6.836 | $6.135 | $5.96 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.258 | $4.908 | $4.803 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 242201RP | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT UMC JACK-RP SMA JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7879 pcs | Data sheet | 242201RP Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX2325 | Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector RP-SMA Jack, Male Pin To Ultra Miniature Coaxial Jack, Male Pin 50 Ohm | Convert To (Adapter End) | Ultra Miniature Coaxial Jack, Male Pin |
| Convert From (Adapter End) | RP-SMA Jack, Male Pin | Conversion Type | Between Series |
| Center Gender | Male to Male | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Gold | Adapter Type | Jack to Jack |
| Adapter Series | RP-SMA to AMC |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
