132169

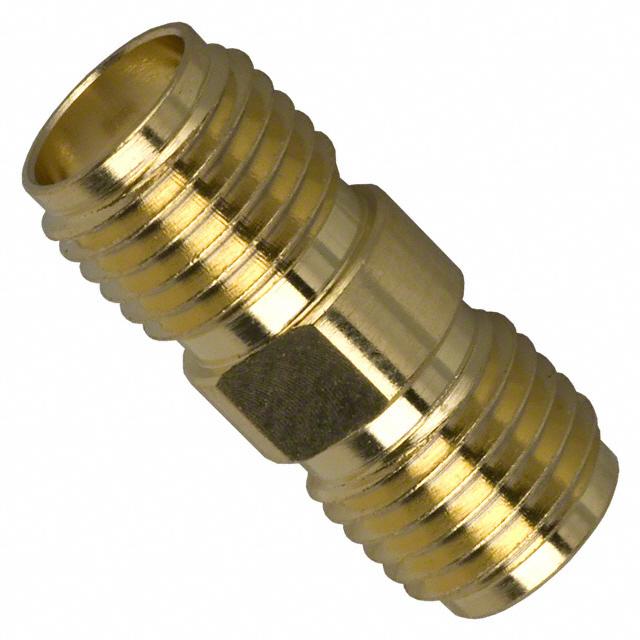

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 132169 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 132169 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 132169 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK-JACK SMA 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.883 | $1.806 | $1.656 | $1.581 | $1.505 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.317 | $1.28 | $1.091 | $1.016 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 132169 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK SMA 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34134 pcs | Data sheet | 132169 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX1242 | Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 18GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohm | Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | Gold | Adapter Type | Jack to Jack |
| Adapter Series | SMA to SMA |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
