77315-102-04LF

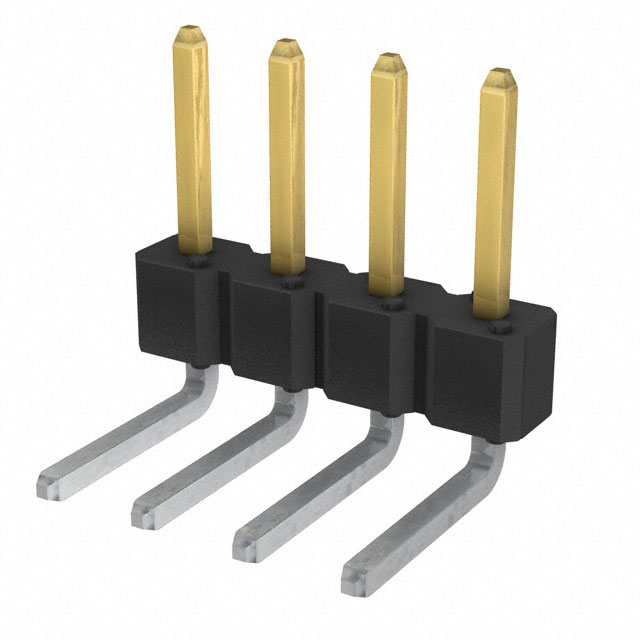

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 77315-102-04LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 77315-102-04LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 77315-102-04LF |
---|---|
Manufacturer | Amphenol FCI |
Description | HEADER BERGSTIK R/A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | 77315-102-04LF | Manufacturer | Amphenol FCI |
---|---|---|---|
Description | HEADER BERGSTIK R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5764 pcs | Data sheet | 77316 |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Unshrouded | Series | BERGSTIK® |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Operating Temperature | - | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 4 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
Insulation Height | 0.094" (2.40mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.201" (5.11mm) | Contact Length - Mating | 0.225" (5.72mm) |
Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
Connector Type | Header, Breakaway | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
