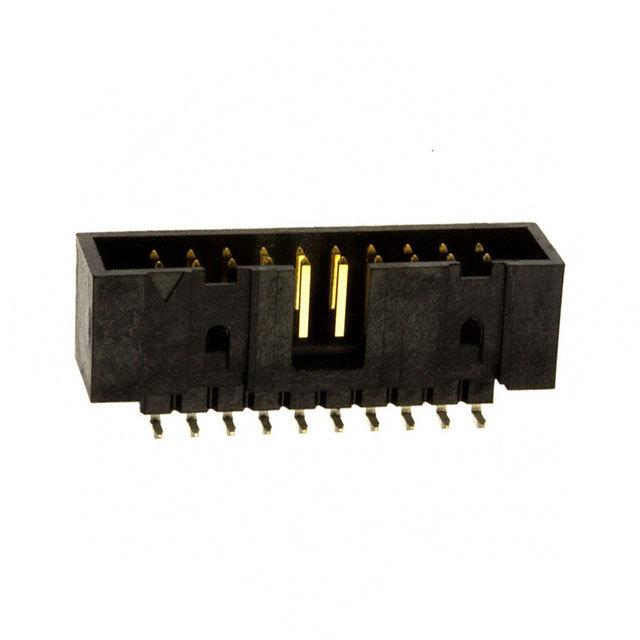

72454-020LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 72454-020LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 72454-020LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 72454-020LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 20POS SMD VERT 30AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 126 pcs | ||
|---|---|---|---|---|---|
| $1.023 | $0.982 | $0.819 | |||
| 504 pcs | 1008 pcs | 5040 pcs | |||
| $0.696 | $0.594 | $0.532 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 72454-020LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 20POS SMD VERT 30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65929 pcs | Data sheet | 72476 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 609-3076 72454-020LF-ND 72454020LF |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
