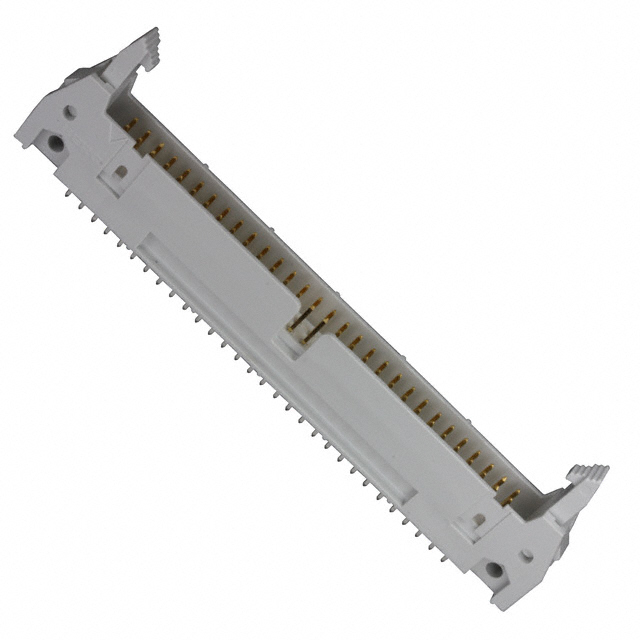

71918-160LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71918-160LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 71918-160LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 71918-160LF |
---|---|
Manufacturer | Amphenol FCI |
Description | CONN HEADER 60POS DUAL VERT PCB |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
---|---|---|---|---|---|
$1.315 | $1.263 | $1.053 | |||
500 pcs | 1000 pcs | 5000 pcs | |||
$0.895 | $0.763 | $0.684 |
- Product parameter
- Data sheet
Product parameter
Part Number | 71918-160LF | Manufacturer | Amphenol FCI |
---|---|---|---|
Description | CONN HEADER 60POS DUAL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 52021 pcs | Data sheet | 71920 Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | 609-3528 71918-160LF-ND 71918160LF |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 60 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
Insulation Height | 0.685" (17.40mm) | Insulation Color | Gray |
Ingress Protection | - | Features | Keying Slot, Mounting Flange |
Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 60 position 0.100" (2.54mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.228" (5.80mm) |
Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
Connector Type | Header | Applications | - |
