58102-G61-05LF

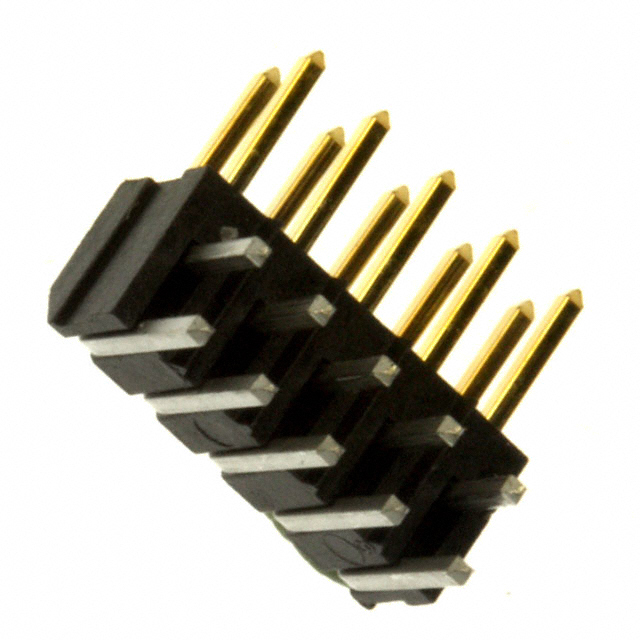

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 58102-G61-05LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 58102-G61-05LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 58102-G61-05LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 10POS 2MM R/A DL PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.51 | $0.463 | $0.397 | $0.331 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.283 | $0.251 | $0.246 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 58102-G61-05LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 10POS 2MM R/A DL PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92557 pcs | Data sheet | 58102 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 58102G6105LF 609-2513 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm) |
| Current Rating | 2A (AC/DC) | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
