20021111-00024T4LF

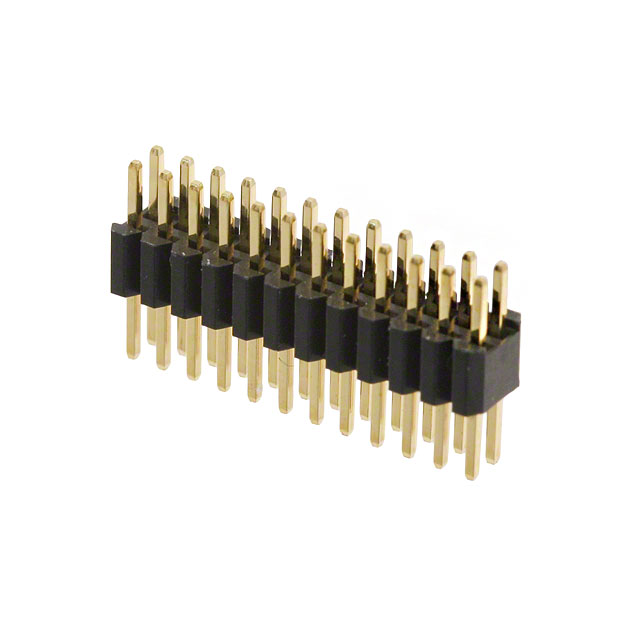

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20021111-00024T4LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20021111-00024T4LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 20021111-00024T4LF |
---|---|
Manufacturer | Amphenol FCI |
Description | CONN HEADER 24POS UNSHD VERT T/H |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 2613 pcs | ||||
---|---|---|---|---|---|
$0.277 |
- Product parameter
- Data sheet
Product parameter
Part Number | 20021111-00024T4LF | Manufacturer | Amphenol FCI |
---|---|---|---|
Description | CONN HEADER 24POS UNSHD VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 69943 pcs | Data sheet | 20021111 DrawingMinitek 127 Catalog |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Unshrouded | Series | Minitek 127® 20021111 |
Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
Packaging | Tube | Overall Contact Length | 0.309" (7.86mm) |
Other Names | 10122277-324000TLF 2002111100024T4LF 609-3719 |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 24 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 24 position 0.050" (1.27mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | 0.120" (3.05mm) |
Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
