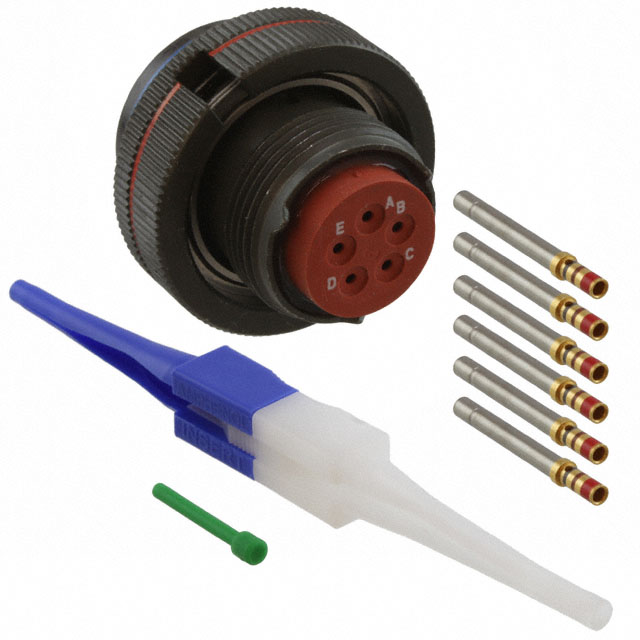

MS3459W14S-5S


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3459W14S-5S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3459W14S-5S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | MS3459W14S-5S |
---|---|
Manufacturer | Amphenol Aerospace Operations |
Description | CONN PLUG FMALE 5POS GOLD CRIMP |
Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
---|---|---|---|---|---|
$20.967 | $18.407 | $17.933 | $16.794 | ||
50 pcs | 100 pcs | 250 pcs | |||
$15.655 | $13.853 | $12.904 |
- Product parameter
- Data sheet
Product parameter
Part Number | MS3459W14S-5S | Manufacturer | Amphenol Aerospace Operations |
---|---|---|---|
Description | CONN PLUG FMALE 5POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
Quantity Available | 2852 pcs | Data sheet | MIL-DTL-5015 Matrix® Series Catalog |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Crimp | Shielding | Unshielded |
Shell Size, MIL | - | Shell Size - Insert | 14S-5 |
Shell Material | Aluminum | Shell Finish | Olive Drab Cadmium |
Series | Military, MIL-DTL-5015 | Packaging | Bulk |
Other Names | 1069-1004 1069-1004-MIL MS3459W14S-5S-MIL MS3459W14S5S |
Orientation | N (Normal) |
Operating Temperature | -55°C ~ 175°C | Number of Positions | 5 |
Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
Insert Material | - | Ingress Protection | Fluid Resistant |
Features | Coupling Nut, Self Locking | Fastening Type | Threaded |
Detailed Description | 5 Position Circular Connector Plug, Female Sockets Crimp Gold | Current Rating | - |
Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
Color | Olive Drab | Cable Opening | - |
Backshell Material, Plating | - | Applications | Aviation, Automotive, Military |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
