Home > Products > Transformers > Power Transformers > XF-10215

XF-10215

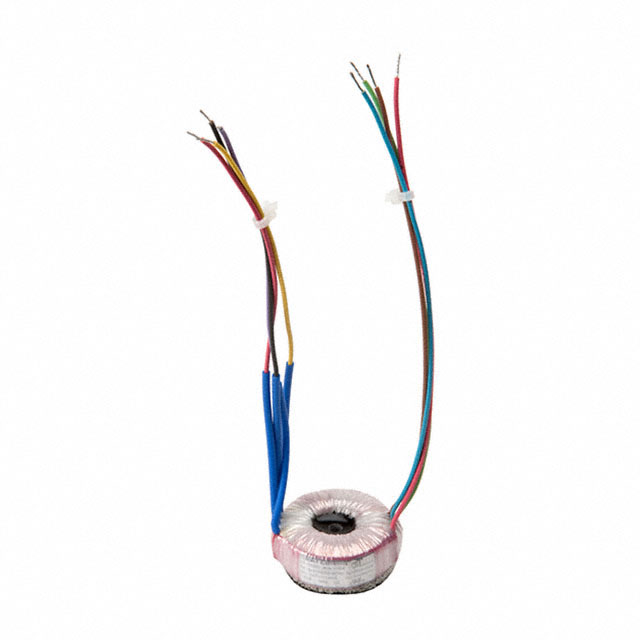

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF-10215 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	XF-10215
Manufacturer	AlfaMag Electronics (AMGIS)
Description	XFRMR TOROIDAL 5VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6044 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$6.151

Product parameter
Data sheet

Product parameter

Part Number	XF-10215	Manufacturer	AlfaMag Electronics (AMGIS)
Description	XFRMR TOROIDAL 5VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6044 pcs	Data sheet	XF-102xx Series
Category	Transformers	Weight	0.254 lb (115.21g)
Voltage - Secondary (Full Load)	Parallel 15V, Series 30V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	47.00mm Dia
Series	-	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	5 VA
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	18.00mm	Current - Output (Max)	Parallel 167mA, Series 84mA
Center Tap	No
