T9CP5A54-24

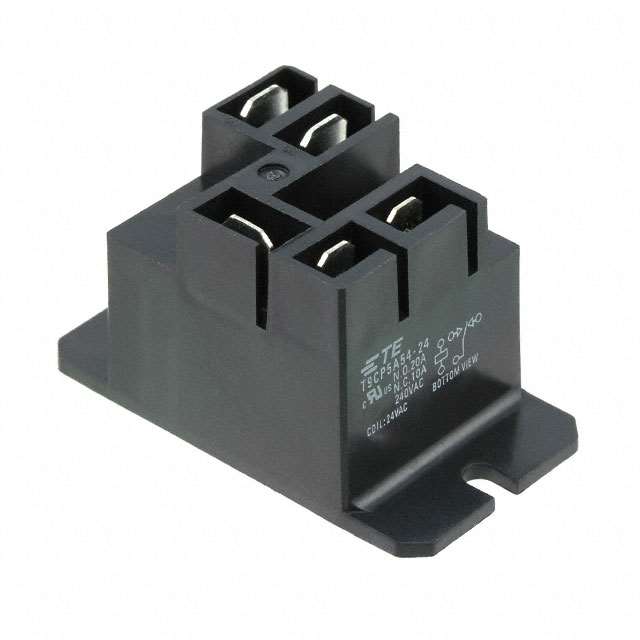

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T9CP5A54-24 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T9CP5A54-24 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T9CP5A54-24 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 20A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.177 | $3.917 | $3.482 | $3.307 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.133 | $2.785 | $2.611 | $2.437 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | T9CP5A54-24 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 20A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15545 pcs | Data sheet | 1649341 DrawingT9C Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 19.2 VAC |
| Turn Off Voltage (Min) | 7.2 VAC | Termination Style | Quick Connect - 0.187"/0.250" |
| Switching Voltage | 250VAC - Max | Series | T9C, OEG |
| Release Time | 15ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1-1649341-7 116493417 PB1284 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 15ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F | Detailed Description | General Purpose Relay SPDT (1 Form C) 24VAC Coil Chassis Mount |
| Contact Rating (Current) | 20A | Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 24VAC |
| Coil Type | Non Latching | Coil Resistance | 144 Ohms |
| Coil Power | 1.6 VA | Coil Current | 66.7mA |
