A1DXH-2636M

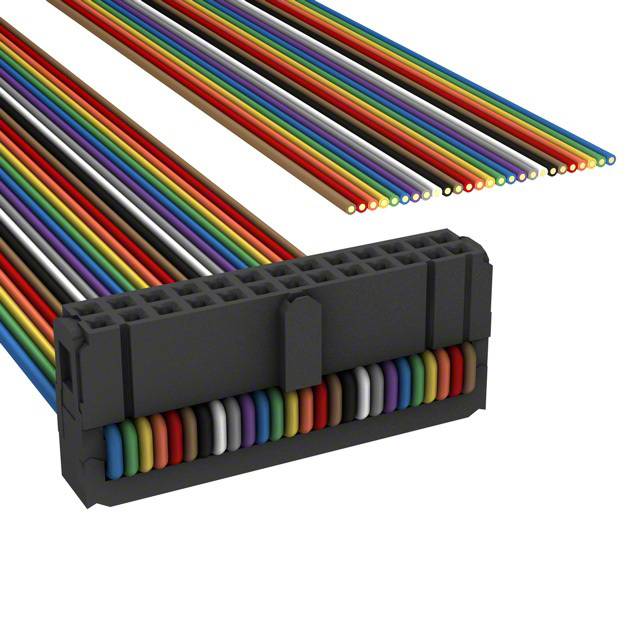

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A1DXH-2636M with confidence from Components-World.HK, 1 Year Warranty
Dowload A1DXH-2636M Details in PDFSee Product Specifications for product details.
Buy A1DXH-2636M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | A1DXH-2636M |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | IDC CABLE - AKR26H/AE26M/X |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
---|---|---|---|---|---|
$2.185 | $2.099 | $1.924 | $1.836 | $1.749 | |
250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
$1.53 | $1.487 | $1.268 | $1.137 |
- Product parameter
- Data sheet
Product parameter
Part Number | A1DXH-2636M | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | IDC CABLE - AKR26H/AE26M/X | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 28191 pcs | Data sheet | 1658621 DrawingRibbon Cable Assembly Length GuideAMP-LATCH Novo Receptacles for Ribbon Cable |
Category | Cable Assemblies | Usage | - |
Shielding | Unshielded | Series | - |
Pitch - Connector | 0.100" (2.54mm) | Pitch - Cable | 0.050" (1.27mm) |
Number of Rows | 2 | Number of Positions | 26 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Length | 3.00' (914.40mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key, Strain Relief |
Detailed Description | 26 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm) | Contact Finish Thickness | 15.0µin (0.38µm) |
Contact Finish | Gold | Connector Type | Socket to Cable |
Color | Multiple, Ribbon | Cable Termination | IDC |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
