826942-4

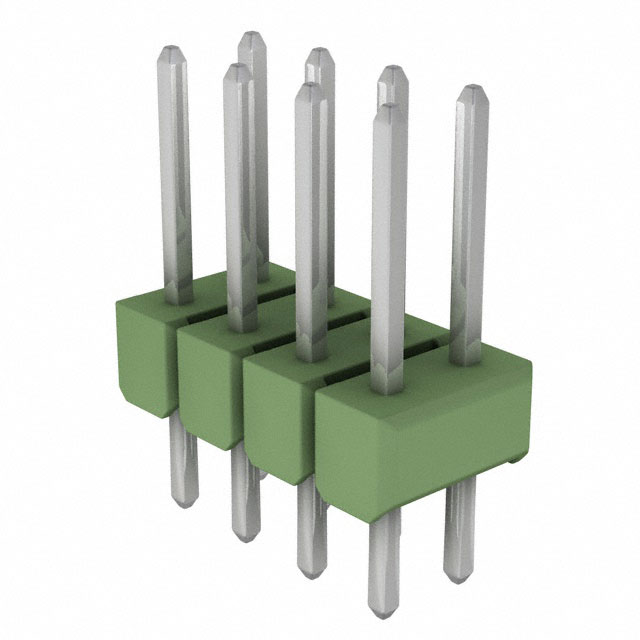

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 826942-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 826942-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 826942-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER BRKWY 8POS VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.241 | $0.225 | $0.172 | $0.15 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.124 | $0.109 | $0.101 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 826942-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER BRKWY 8POS VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 239283 pcs | Data sheet | AMPMOU II Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.465" (11.81mm) |
| Other Names | 826942-4-ND A122661 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 36 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.228" (5.80mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | - |
