8-696357-1

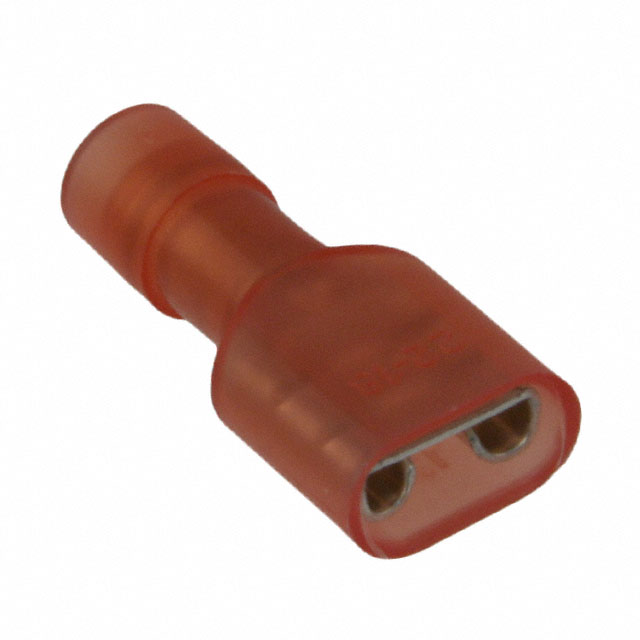

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-696357-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-696357-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-696357-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN QC RCPT 18-22AWG 0.250 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-696357-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN QC RCPT 18-22AWG 0.250 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5575 pcs | Data sheet | 696357 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Termination | Crimp | Terminal Type | Standard |
| Tab Width | 0.250" (6.35mm) | Tab Thickness | 0.032" (0.81mm) |
| Tab Length | - | Series | Faston, PIDG |
| Packaging | Bulk | Other Names | 86963571 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Overall | 0.891" (22.63mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.090" ~ 0.125" (2.29mm ~ 3.18mm) | Insulation | Fully Insulated |
| Gender | Female | Features | - |
| Detailed Description | 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated | Contact Material | Brass |
| Contact Finish | Tin | Color | Red |
