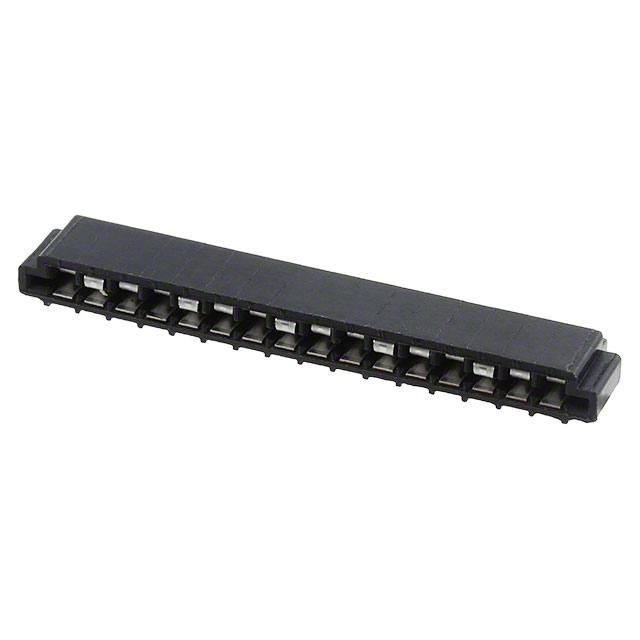

6-520314-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6-520314-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6-520314-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6-520314-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC TOP 16POS 2.54MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.604 | $0.548 | $0.515 | $0.492 | ||
| 100 pcs | 480 pcs | 960 pcs | 1440 pcs | ||
| $0.47 | $0.425 | $0.38 | $0.336 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6-520314-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC TOP 16POS 2.54MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69102 pcs | Data sheet | 520314 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Kinked Pin | Series | Triomate |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 16 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 25 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 31 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyester Thermoplastic, Glass Filled |
| Housing Color | Black | Height Above Board | 0.190" (4.83mm) |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm | Detailed Description | 16 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight |
| Actuator Material | - | Actuator Color | - |
