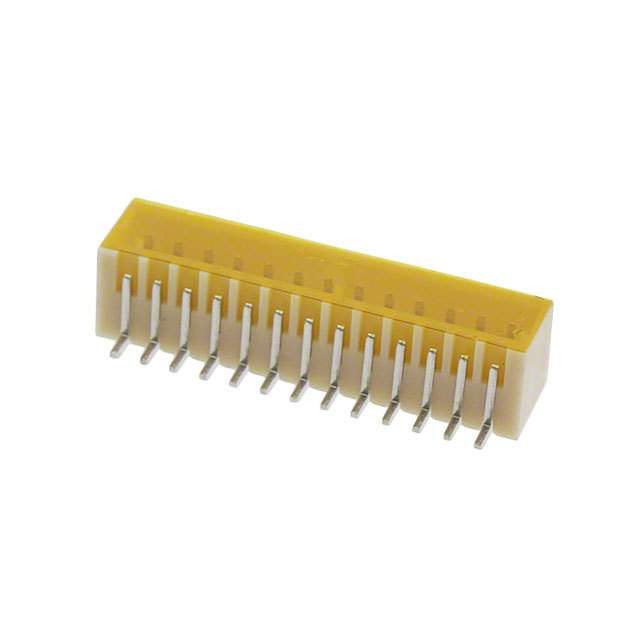

6-1775443-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6-1775443-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6-1775443-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6-1775443-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 1.5MM 13POS VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6400 pcs | ||||
|---|---|---|---|---|---|
| $0.341 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6-1775443-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 1.5MM 13POS VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63357 pcs | Data sheet | 1775443 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 617754433 A99993TR |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 13 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | - | Detailed Description | Connector Header Surface Mount 13 position 0.059" (1.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.106" (2.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
