52936-3

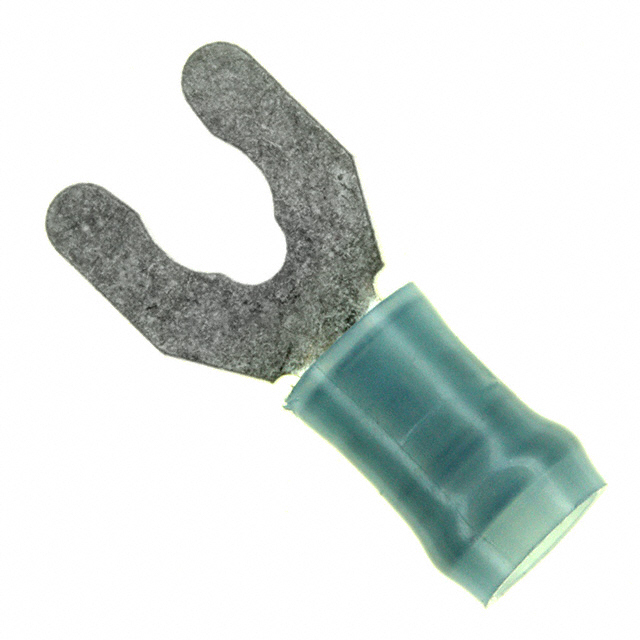

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52936-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52936-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52936-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPD SPR 14-16 AWG #8 .182 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.54 | $0.49 | $0.46 | $0.44 | $0.42 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.38 | $0.35 | $0.30 | $0.28 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52936-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPD SPR 14-16 AWG #8 .182 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76929 pcs | Data sheet | 52936 |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.375" (9.53mm) | Tongue Inside Opening | 0.164" (4.17mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Cut Tape (CT) | Other Names | 529363 A28167CT |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | 0.404" (10.26mm) | Length - Ring Center to Termination | 0.281" (7.14mm) |
| Length - Overall | 0.860" (21.84mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.115" ~ 0.182" (2.92mm ~ 4.62mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material | Phosphor Bronze | Contact Finish | Tin |
| Color | Blue |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
