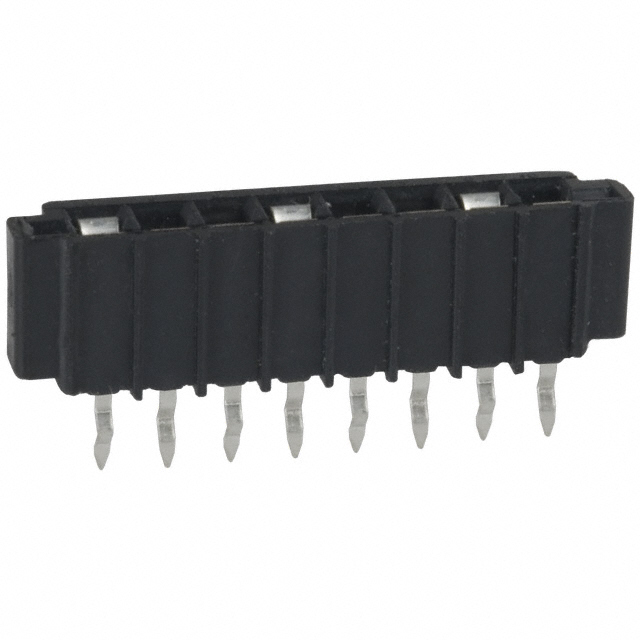

5-520316-8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-520316-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-520316-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-520316-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC VERT 8POS 2.54MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-520316-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC VERT 8POS 2.54MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5681 pcs | Data sheet | 5-520316-9 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Kinked Pin | Series | Triomate |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 25 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester Thermoplastic, Glass Filled | Housing Color | Black |
| Height Above Board | 0.273" (6.93mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Detailed Description | 8 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.100" (2.54mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
